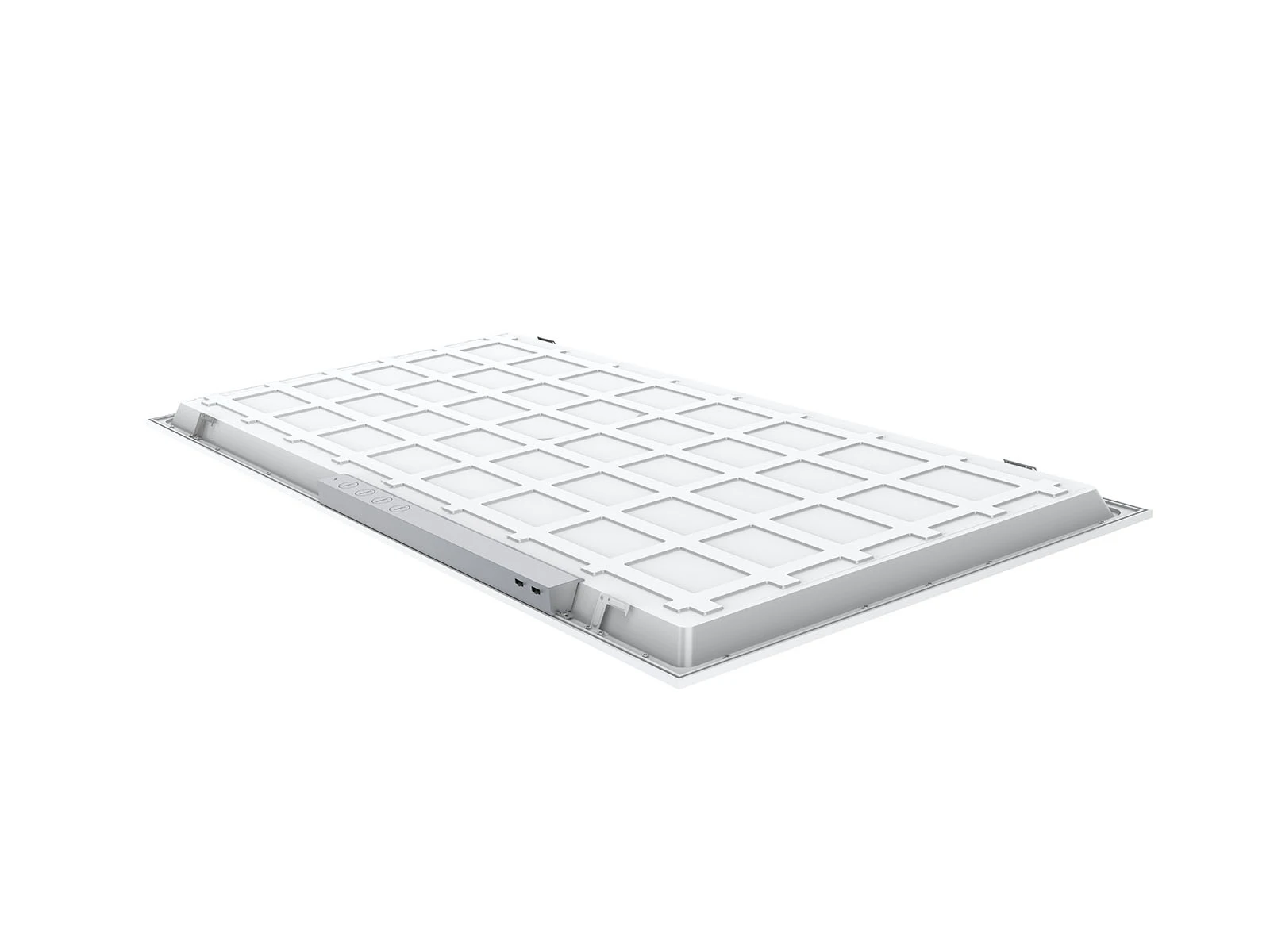

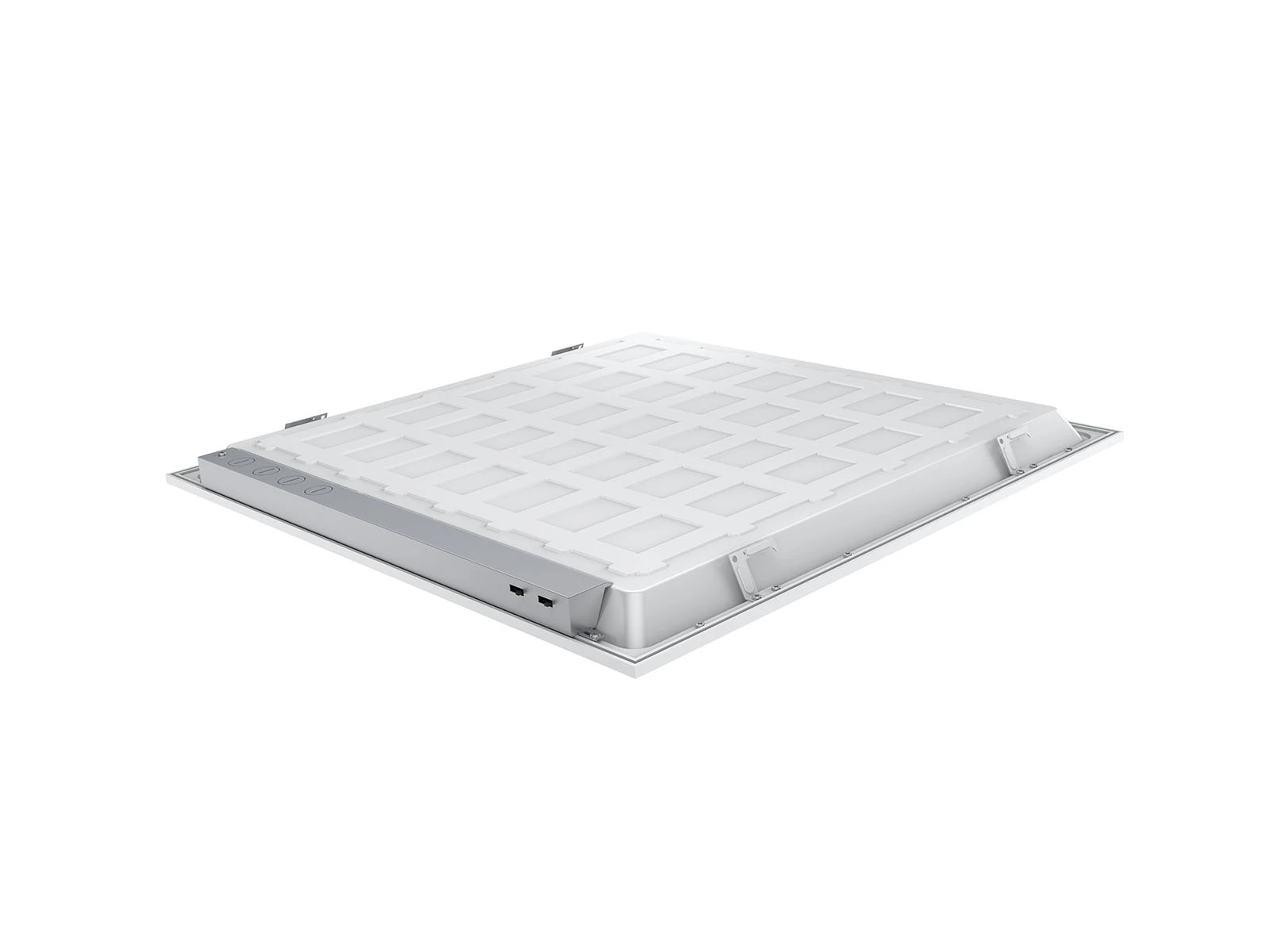

Back-lit LED Panel
Our backlit LED panel light delivers uniform, flicker-free illumination with direct-lit technology, ideal for offices, supermarkets, and schools.
Compared to edge-lit panels, backlit designs offer better light distribution and easier maintenance. Learn more about LED lighting technology on Wikipedia.
Available in 600x600, 1200x300 sizes with UGR<19 options for glare-free environments.
Features
- Isolated driver and non-isolated driver available.
- Flicker-free driver available.
- Multi CCT & Wattages adjustable.
- Uniform light effect with PMMA LGP.
- High light efficiency standard 110LPW and high output 125LPW for options.
- Recessed / Suspended / Surface Mount.
- Standard anti-shock hook accessory available.
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| FM-PL-B01-303 | 295*295mm | 12W | 200~240V | 30~40V | <4 | 1000~1100lm |
| FM-PL-B01-306 | 295*595mm | 25W | 200~240V | 30~40V | <4 | 2100~2400lm |
| FM-PL-B01-123 | 295*1195mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-B01-606 | 595*595mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-B01-606 | 595*595mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-PL-B01-626 | 620*620mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-B01-626 | 620*620mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-PL-B01-126 | 595*1195mm | 60W | 200~240V | 30~40V | <4 | 5700~6300lm |
