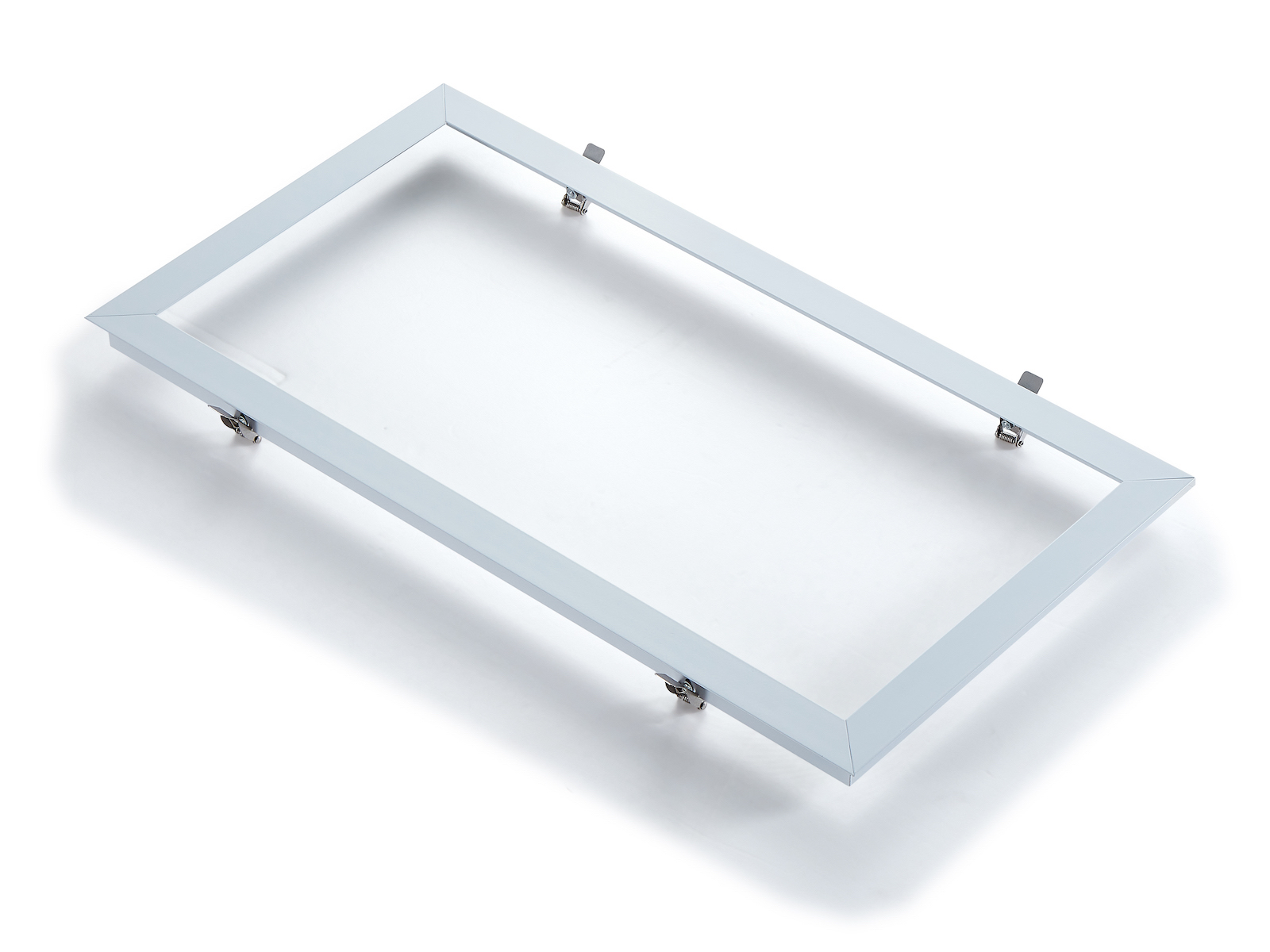

Recessed frame for led panel
LED panel recessed frame, is a regular frame for LED panel recessed installation.

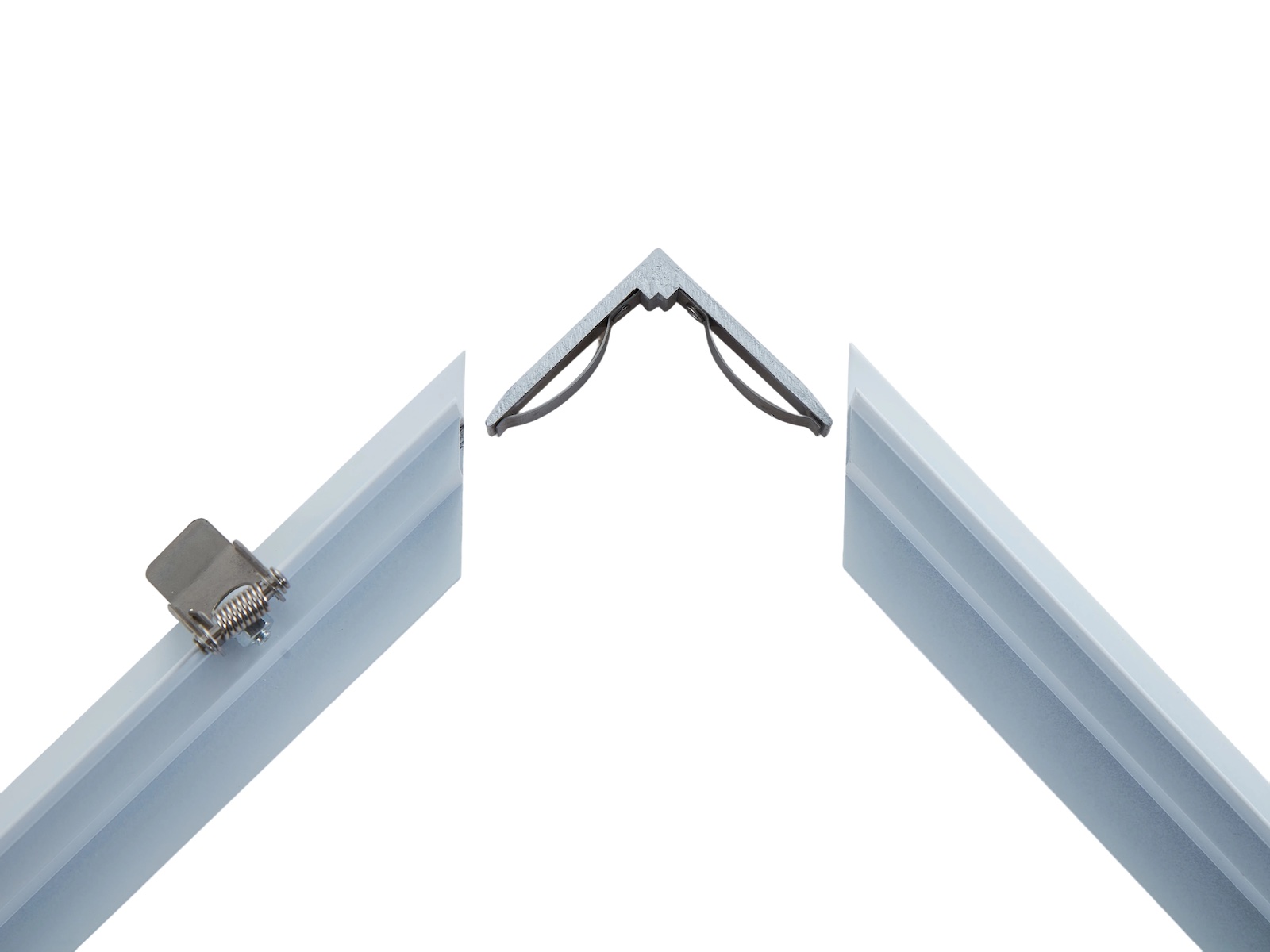

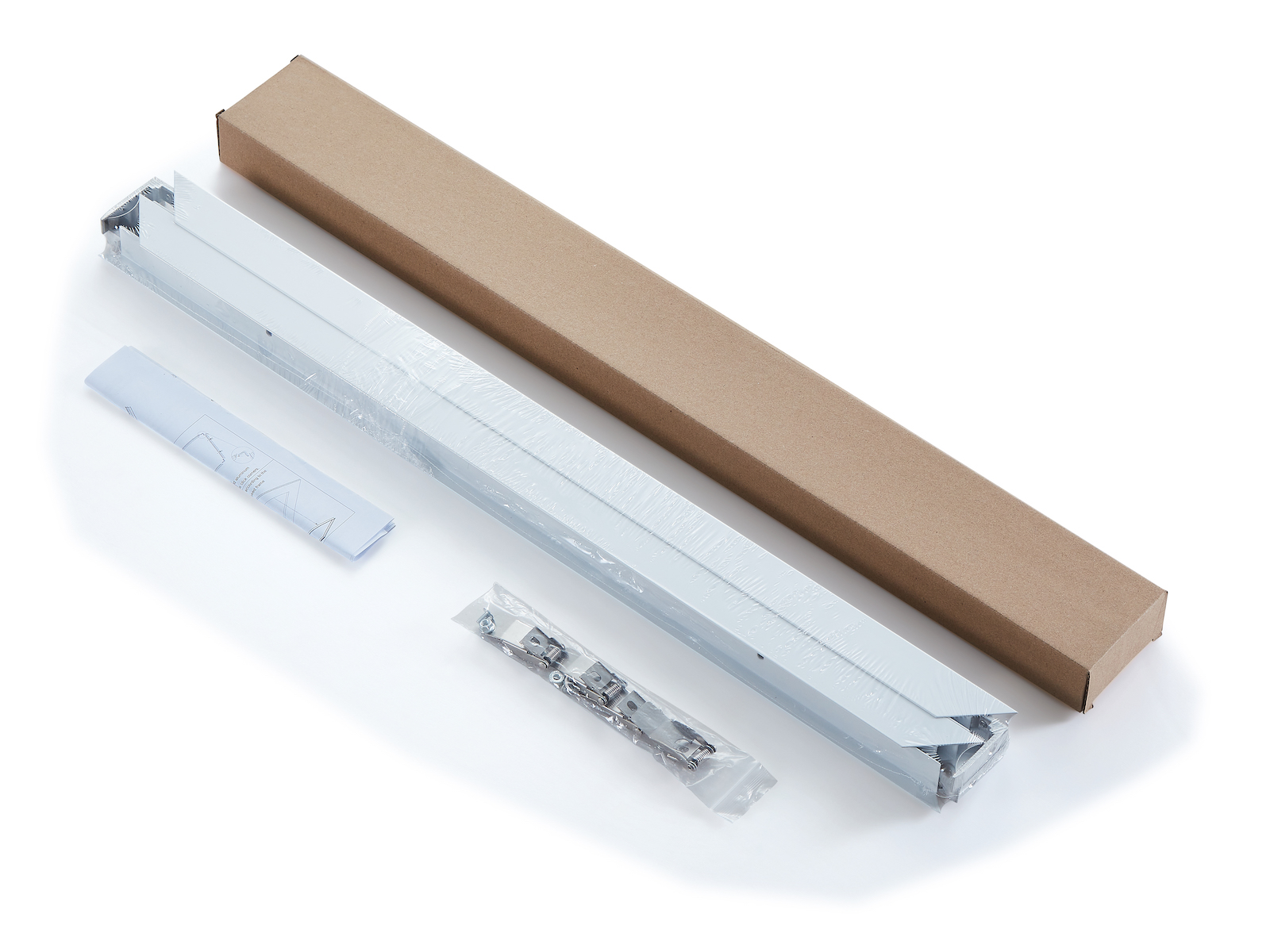

With full 6063 aluminium alloy structure and powder-coated surface finish, it works for edge-lit panel and back-lit panel. Its advantage is easy assemble, save shipping cost.
Features
- Regular size available: 300×300, 300×600, 600×600, 620×620, 300×1200, 600×1200mm etc.
- Customized sizes available: 400×1600, 300×1500, 1500×2000mm etc.
- White/Silver/Black available, White RAL9016, RAL9010, RAL9003
- 25mm height are available.
- 1.4mm thickness are available.
- 7 years warranty
| Article Number | Size | Thickness | Height |
|---|---|---|---|
| FM-RF01-303 | 300*300mm | 1.4mm | 25mm |
| FM-RF01-306 | 300*600mm | 1.4mm | 25mm |
| FM-RF01-606 | 600*600mm | 1.4mm | 25mm |
| FM-RF01-626 | 625*625mm | 1.4mm | 25mm |
| FM-RF01-123 | 1200*300mm | 1.4mm | 25mm |
| FM-RF01-126 | 1200*600mm | 1.4mm | 25mm |
