Frameless edge lit led panel

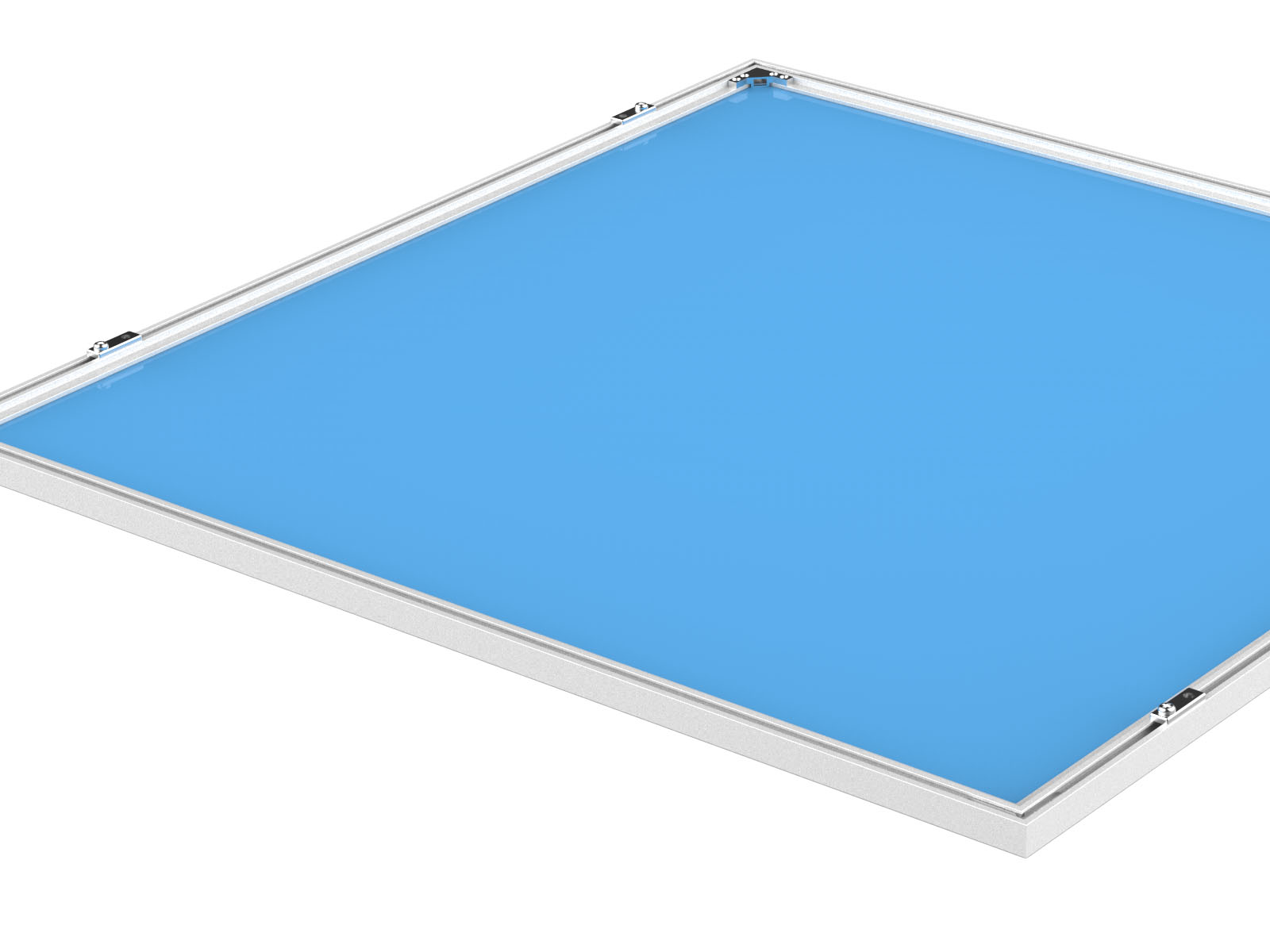

Frameless side lit LED light offers an ultra-thin seamless design with side-lit technology, providing uniform and glare-free illumination for premium commercial spaces.

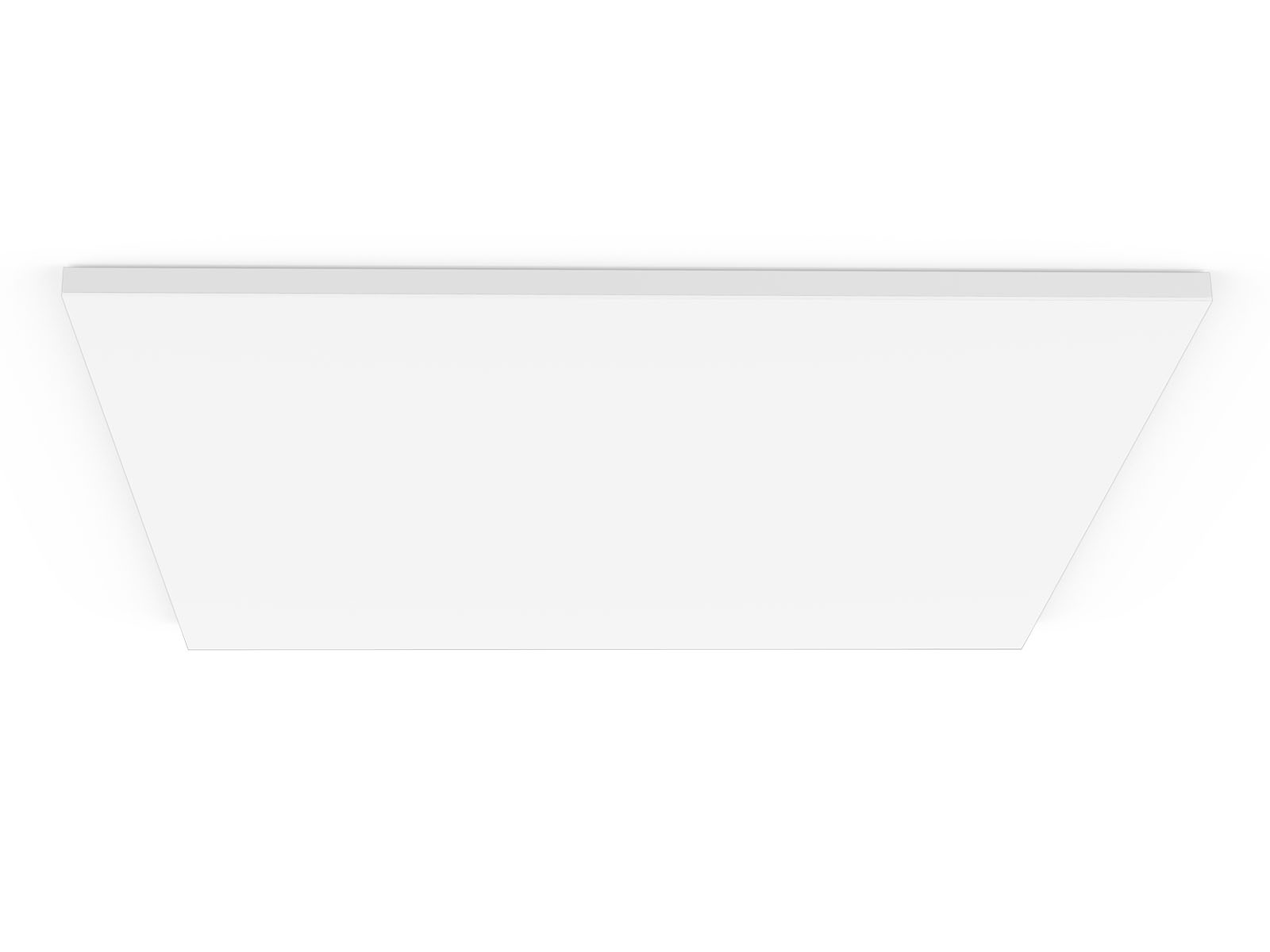

Compared to traditional panels, this frameless design delivers a cleaner ceiling integration with no visible frame, making it ideal for high-end offices, hotels, and retail stores.
Learn more about LED lighting technology on Wikipedia.
Available in regular 600x600 and other customized sizes with high efficiency and easy installation.

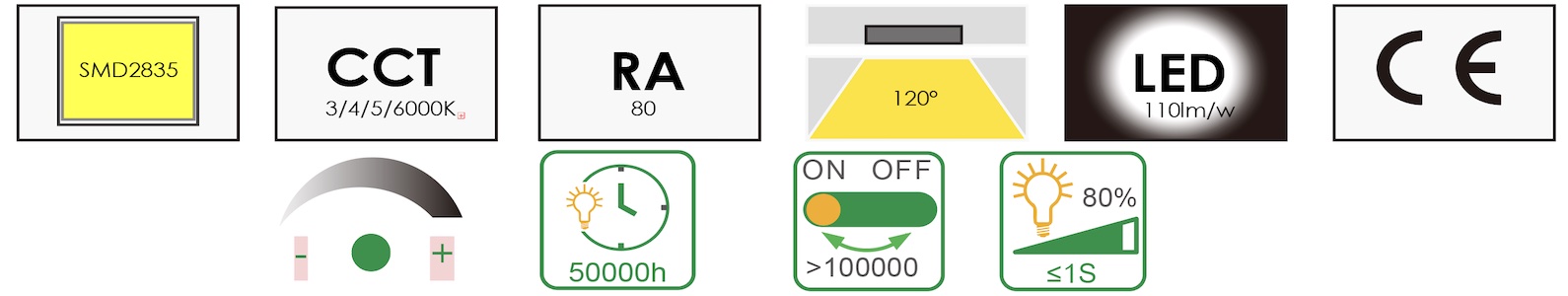

Features
- Frameless design with super slim 18mm thickness.
- High lumen efficiency, 100lm/W.
- Beam angle 120°.
- IP40 for indoor use only.
- Dimming ways: Triac/0-10V/DALI dimming.
- External flicker free driver.
- Installation: Recessed/Pendant.

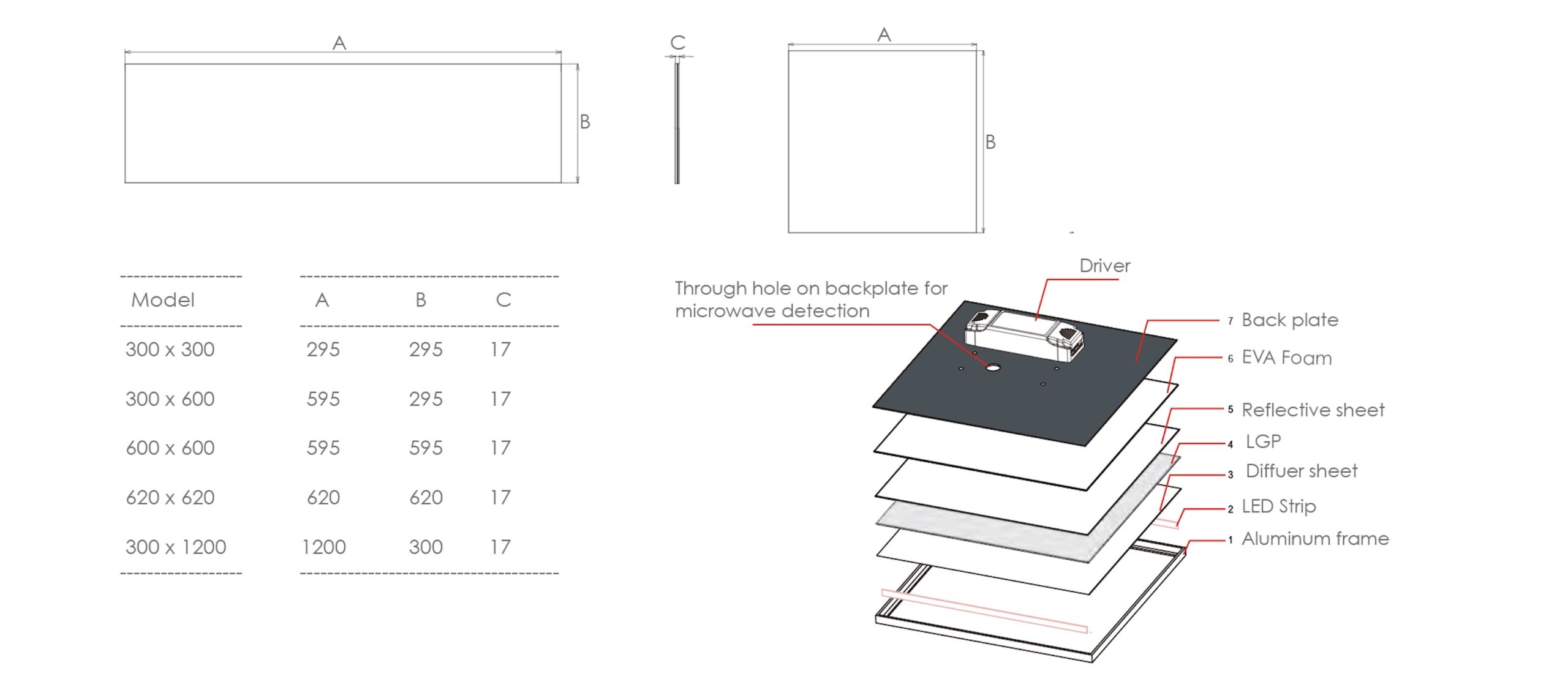

- Dimension: Regular size and customized size are available!
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| FM-PL-F01-303 | 295*295mm | 12W | 200~240V | 30~40V | <4 | 1000~1100lm |
| FM-PL-F01-306 | 295*595mm | 25W | 200~240V | 30~40V | <4 | 2100~2400lm |
| FM-PL-F01-123 | 295*1195mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-F01-606 | 595*595mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-F01-606 | 595*595mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-PL-F01-626 | 620*620mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-PL-F01-626 | 620*620mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-PL-F01-126 | 595*1195mm | 60W | 200~240V | 30~40V | <4 | 5700~6300lm |
