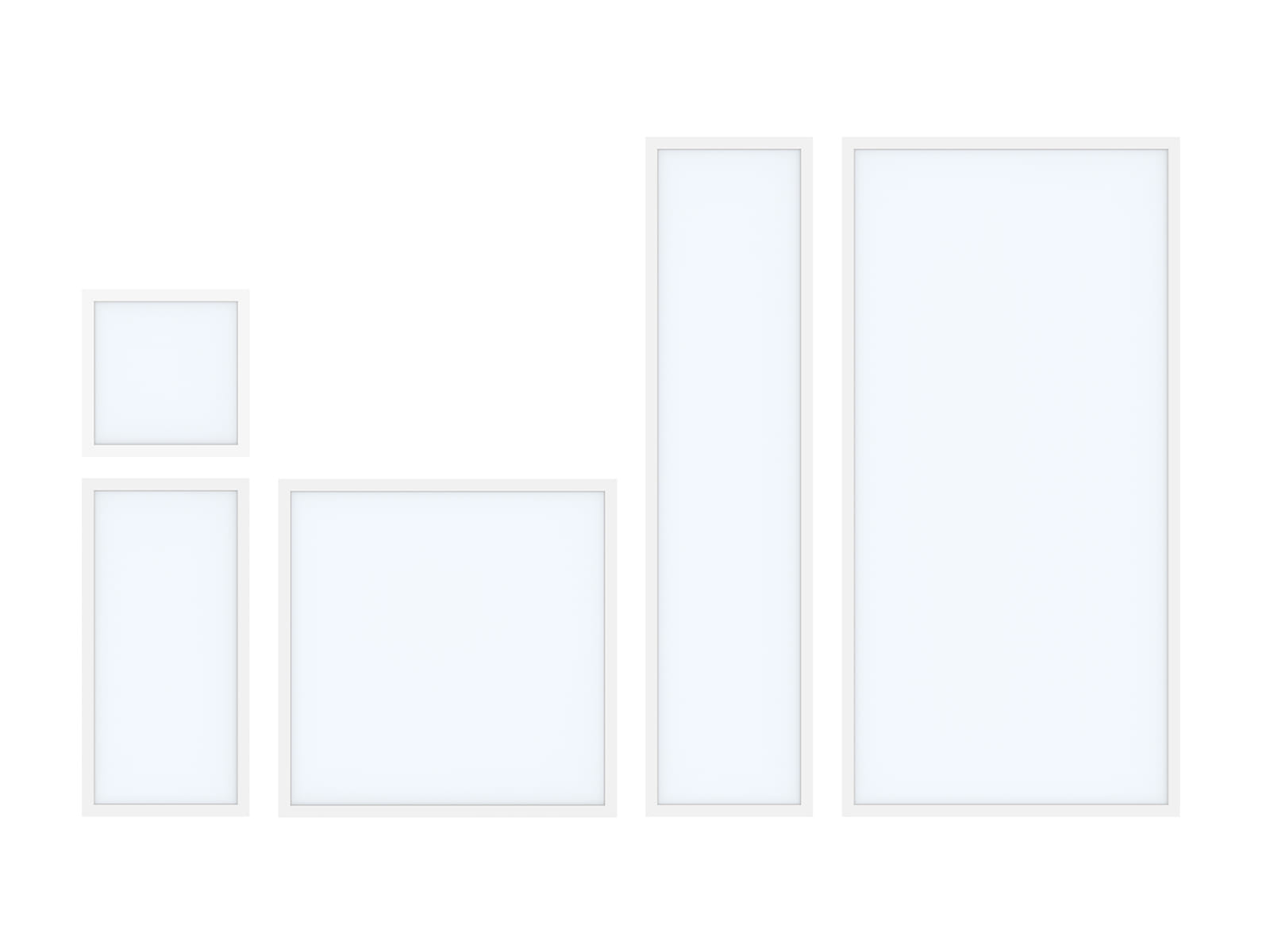

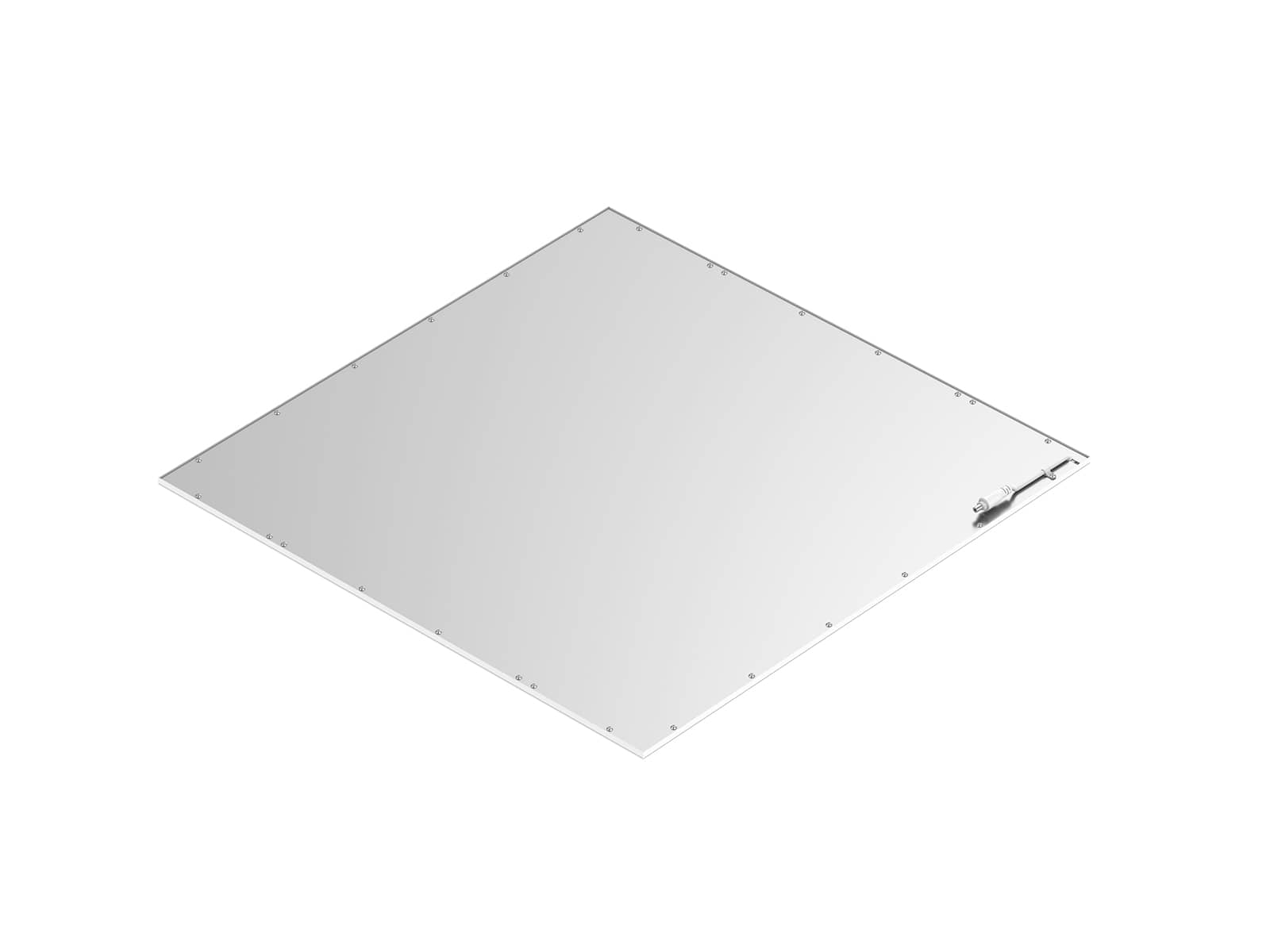

Edge-lit LED Panel
The LED panel light is a high-end indoor lighting fixture with a 6063 aluminum powder-coated surface finish on the extrusion frame. It comes with multiple CCT and multiple lumens output, which allows us to choose the most suitable solutions for your projects in one fixture. The edgelit design is with PMMA LGP.
Features
- Ultra thin flush mount downlight with 11/16'' thickness
- Available in 5’’/7’’/9’’/12’’ diameters
- 5 field-adjustable CCT in
- 2700K+3000K+3500K+4000K+5000K
- PMMA light guide optimizes light uniformity
- Triac dimming @ AC120V
- 1 lamp with 3 installation methods: pre-offered junction box, recessed can, direct ceiling
- Damp Location
- IC rated
Performance Summary
| Model NO. | Size (inch) | Watts | CCT | Efficacy | Lumens (±10%) | Voltage | CRI | DIM | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| DL003-5-10W-DC5 | 5 | 10W | 5CCT Selectable 2700K+3000K+3500K+4000K+5000K |
70–85lm/W | 750–900lm | AC120V | 90 | Triac | 110° |
| DL003-7-12W-DC5 | 7 | 12W | 80–90lm/W | 950–1100lm | |||||
| DL003-9-18W-DC5 | 9 | 18W | 80–90lm/W | 1400–1600lm | |||||
| DL003-12-24W-DC5 | 12 | 24W | 80–90lm/W | 1900–2100lm |
DL003-5-10W-DC5
Size5 inch
Power10W
CCT5CCT (2700K–5000K)
Efficacy70–85 lm/W
Lumens750–900 lm
Voltage / CRI / DIM / BeamAC120V / CRI 90 / Triac / 110°
DL003-7-12W-DC5
Size7 inch
Power12W
CCT5CCT (2700K–5000K)
Efficacy80–90 lm/W
Lumens950–1100 lm
Voltage / CRI / DIM / BeamAC120V / CRI 90 / Triac / 110°
DL003-9-18W-DC5
Size9 inch
Power18W
CCT5CCT (2700K–5000K)
Efficacy80–90 lm/W
Lumens1400–1600 lm
Voltage / CRI / DIM / BeamAC120V / CRI 90 / Triac / 110°
DL003-12-24W-DC5
Size12 inch
Power24W
CCT5CCT (2700K–5000K)
Efficacy80–90 lm/W
Lumens1900–2100 lm
Voltage / CRI / DIM / BeamAC120V / CRI 90 / Triac / 110°
Remarks: All above efficacy and lumens are subject to white finish, @4000K, black finish is 10–15% lower. Please check IES files for accurate data.
