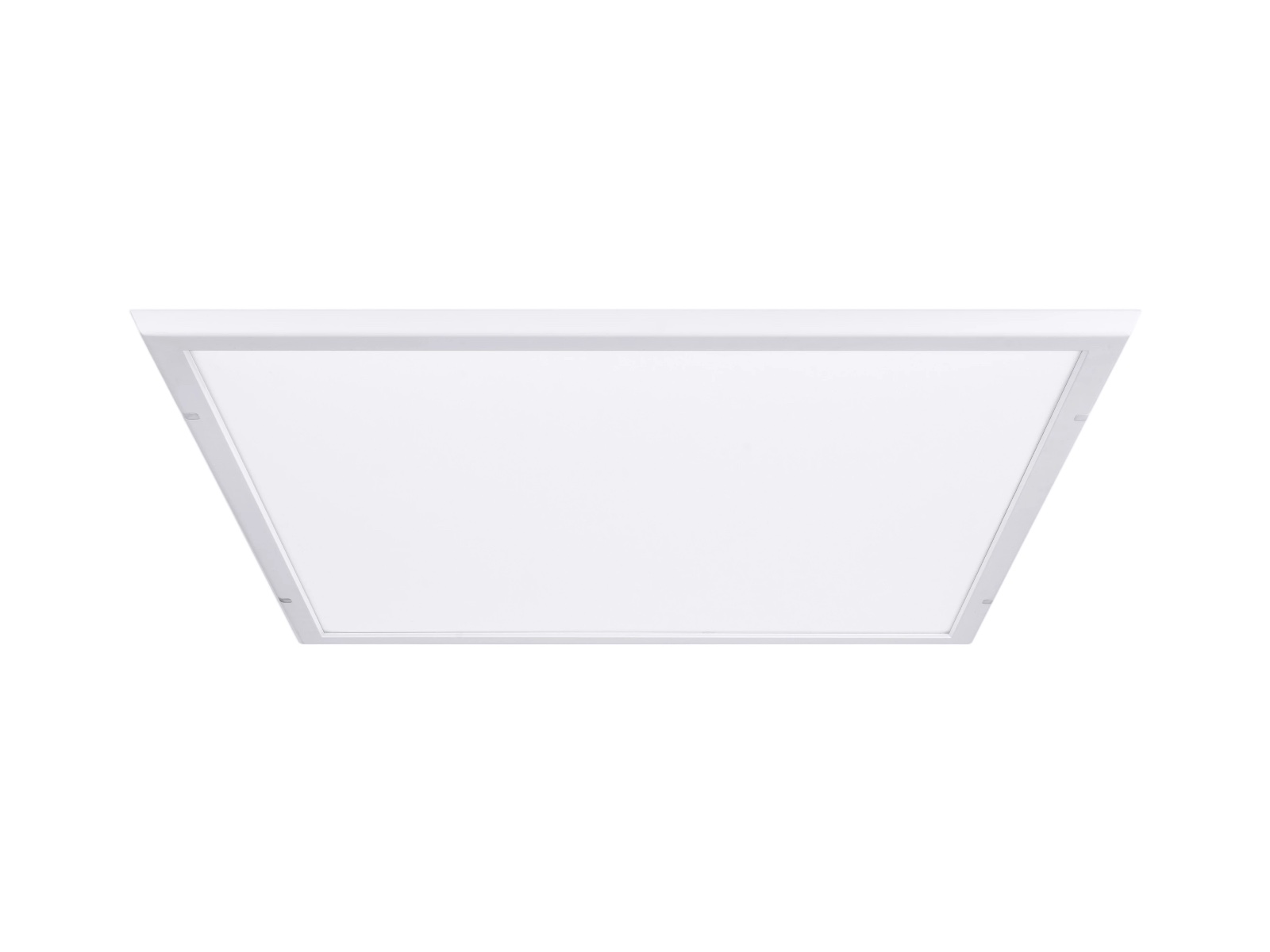

IP65 cleanroom LED panel light
IP65 cleanroom LED Panel light features an ultra-thin design with side-lit technology, delivering uniform and glare-free illumination for Nursing home and hospitals.
Compared to backlit panels, the Waterproof cleanroom LED flat panel offers slimmer profile and more elegant appearance while maintaining excellent light distribution.
Learn more about LED lighting technology on Wikipedia.
Available in 600x600 and 620x620 sizes with high efficiency and easy installation.
Features
- Isolated driver and non-isolated driver available.
- Flicker-free driver available.
- Multi CCT & Wattages adjustable.
- Uniform light effect with PMMA LGP.
- High light efficiency standard 110LPW and high output 125LPW for options.
- Recessed / Suspended / Surface Mount.
- Standard anti-shock hook accessory available.
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| FM-IP02-303 | 295*295mm | 12W | 200~240V | 30~40V | <4 | 1000~1100lm |
| FM-IP02-306 | 295*595mm | 25W | 200~240V | 30~40V | <4 | 2100~2400lm |
| FM-IP02-123 | 295*1195mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-IP02-606 | 595*595mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-IP02-606 | 595*595mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-IP02-626 | 620*620mm | 40W | 200~240V | 30~40V | <4 | 3800~4200lm |
| FM-IP02-626 | 620*620mm | 50W | 200~240V | 30~40V | <4 | 4750~5250lm |
| FM-IP02-126 | 595*1195mm | 60W | 200~240V | 30~40V | <4 | 5700~6300lm |
