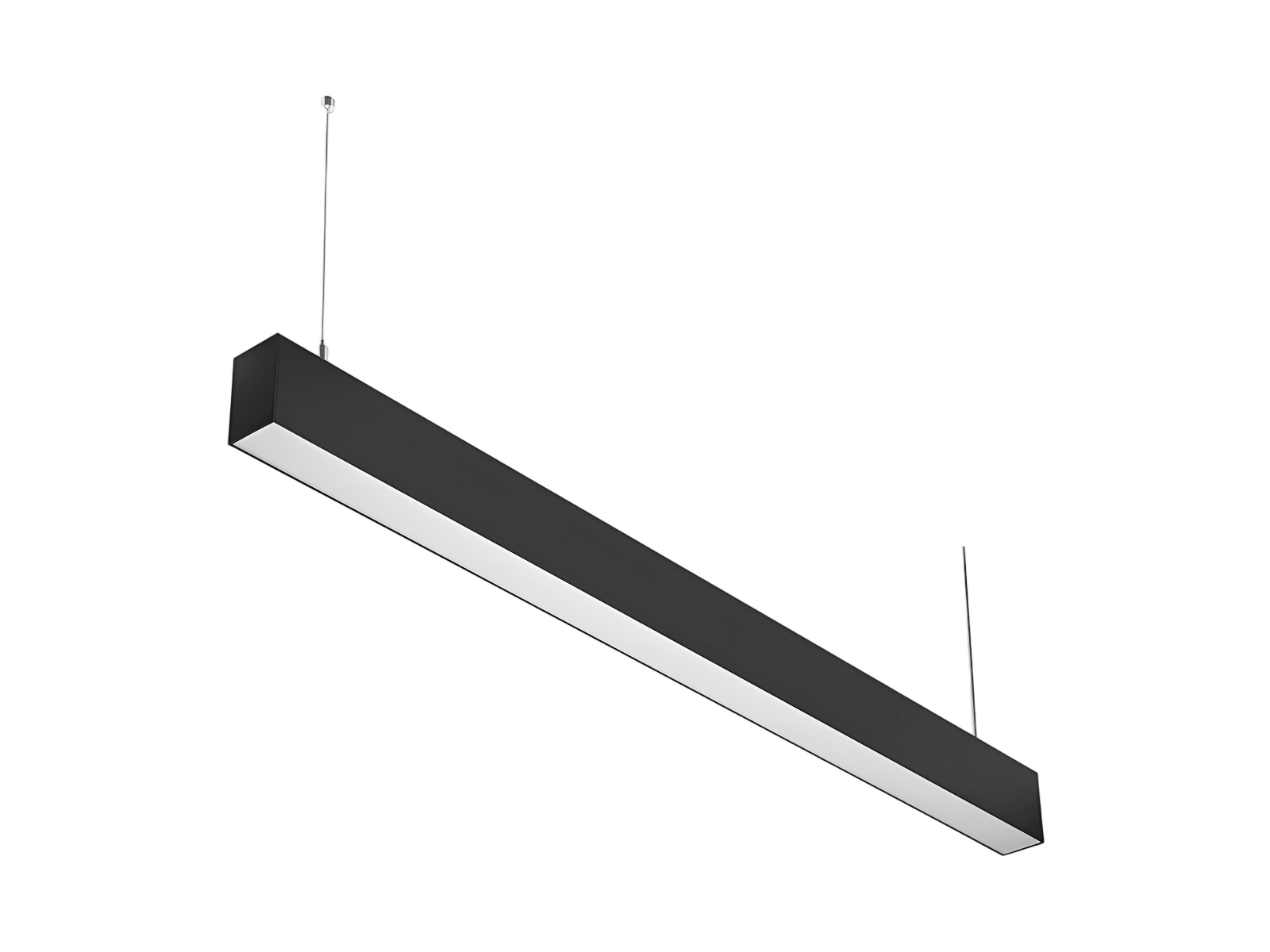

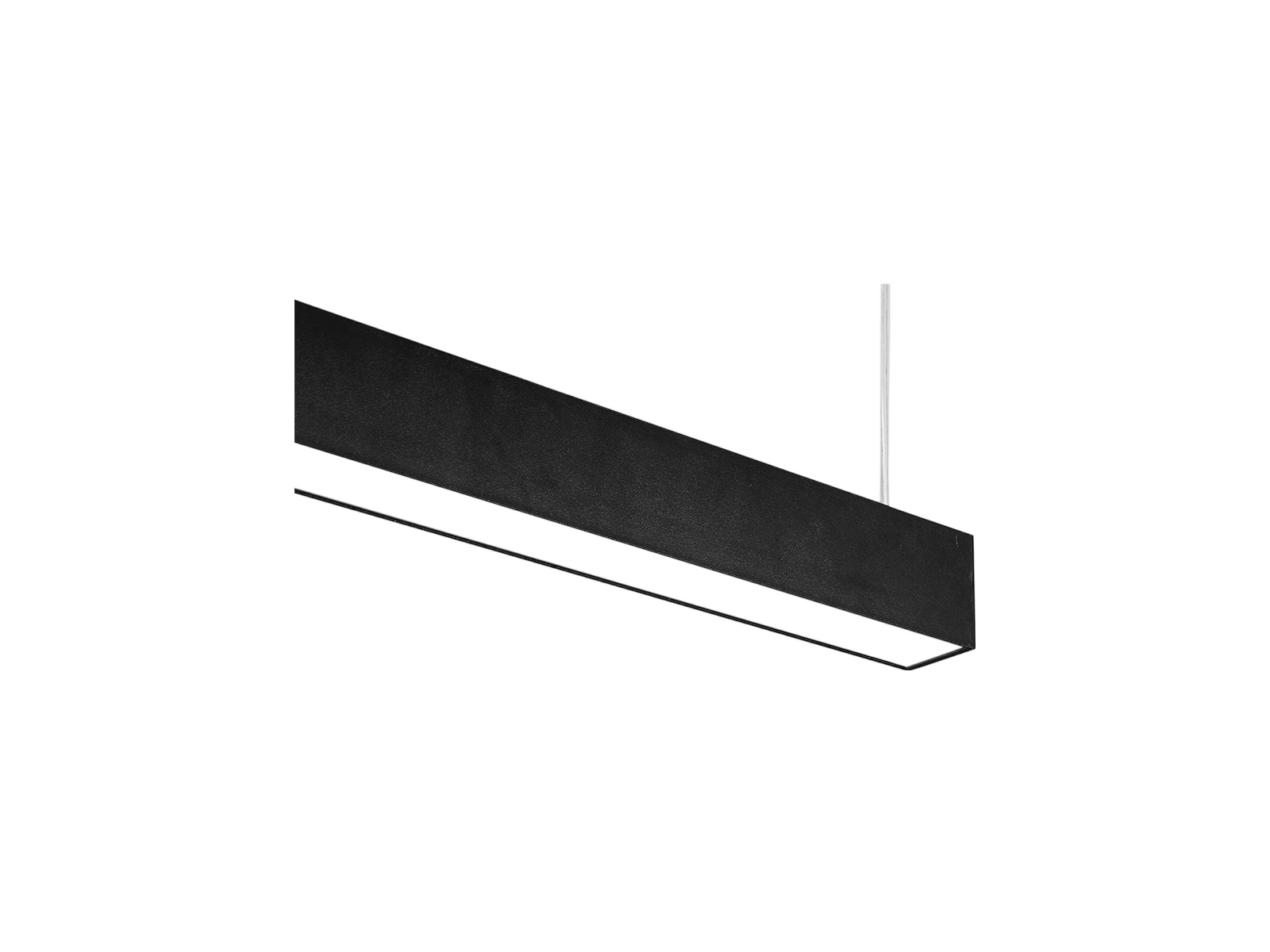

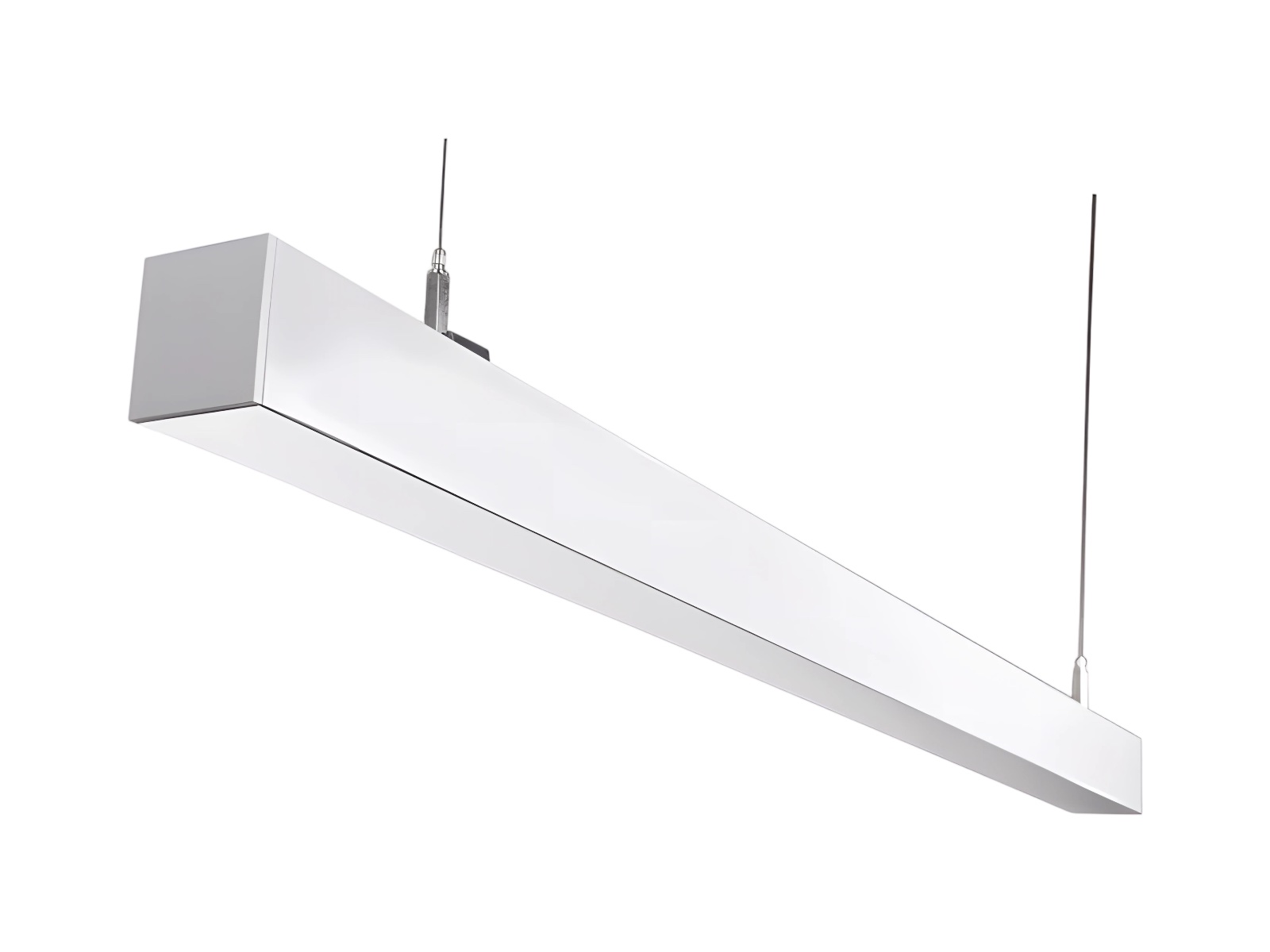

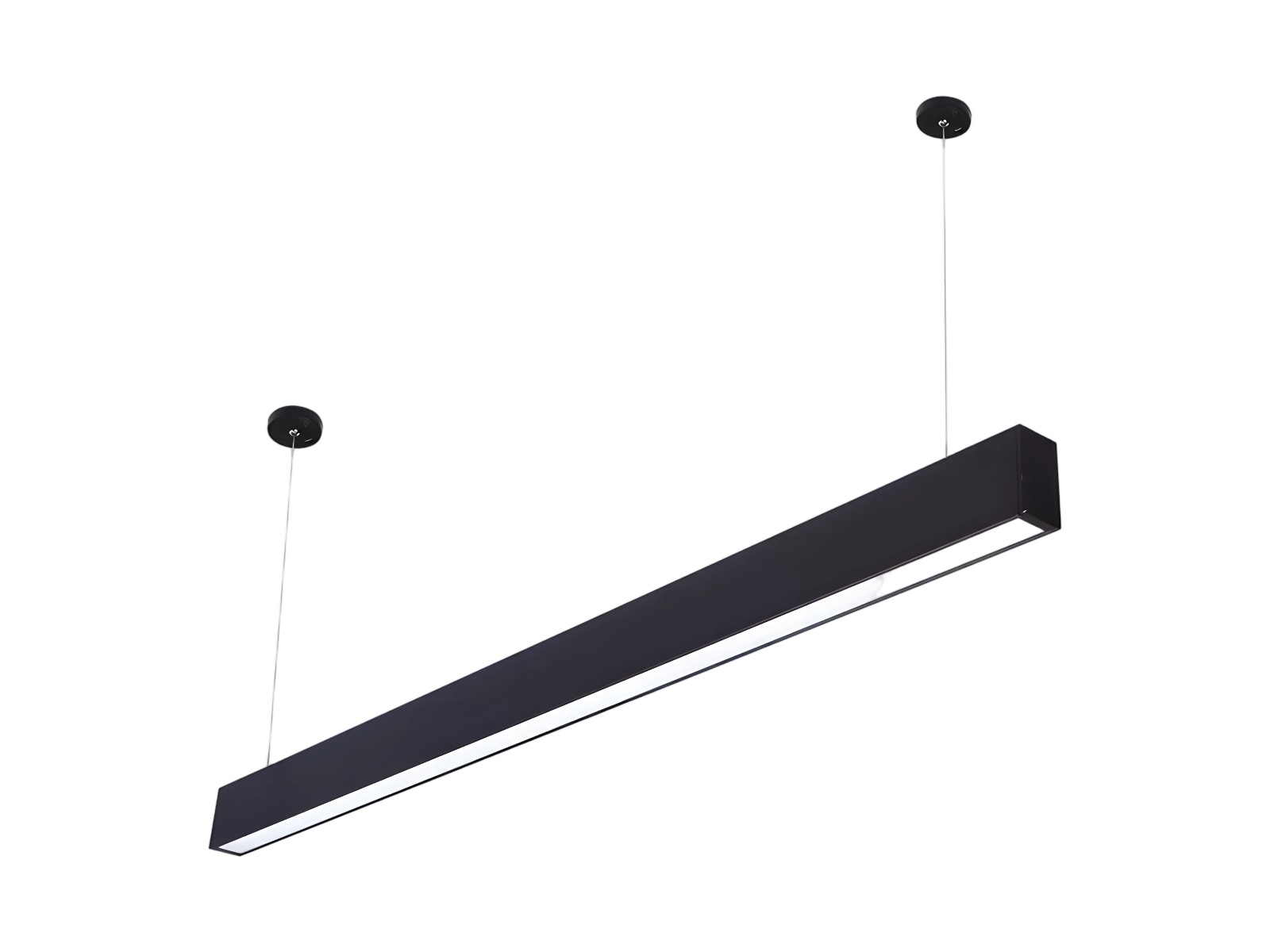

LED linear pendant light
LED Linear pendant light, perfect for office, warehouses and parking lots. This led light is a modern fixture that divided into aluminum and plastic styles.
The aluminum ones come with a sliding gear tray and different functional drivers.

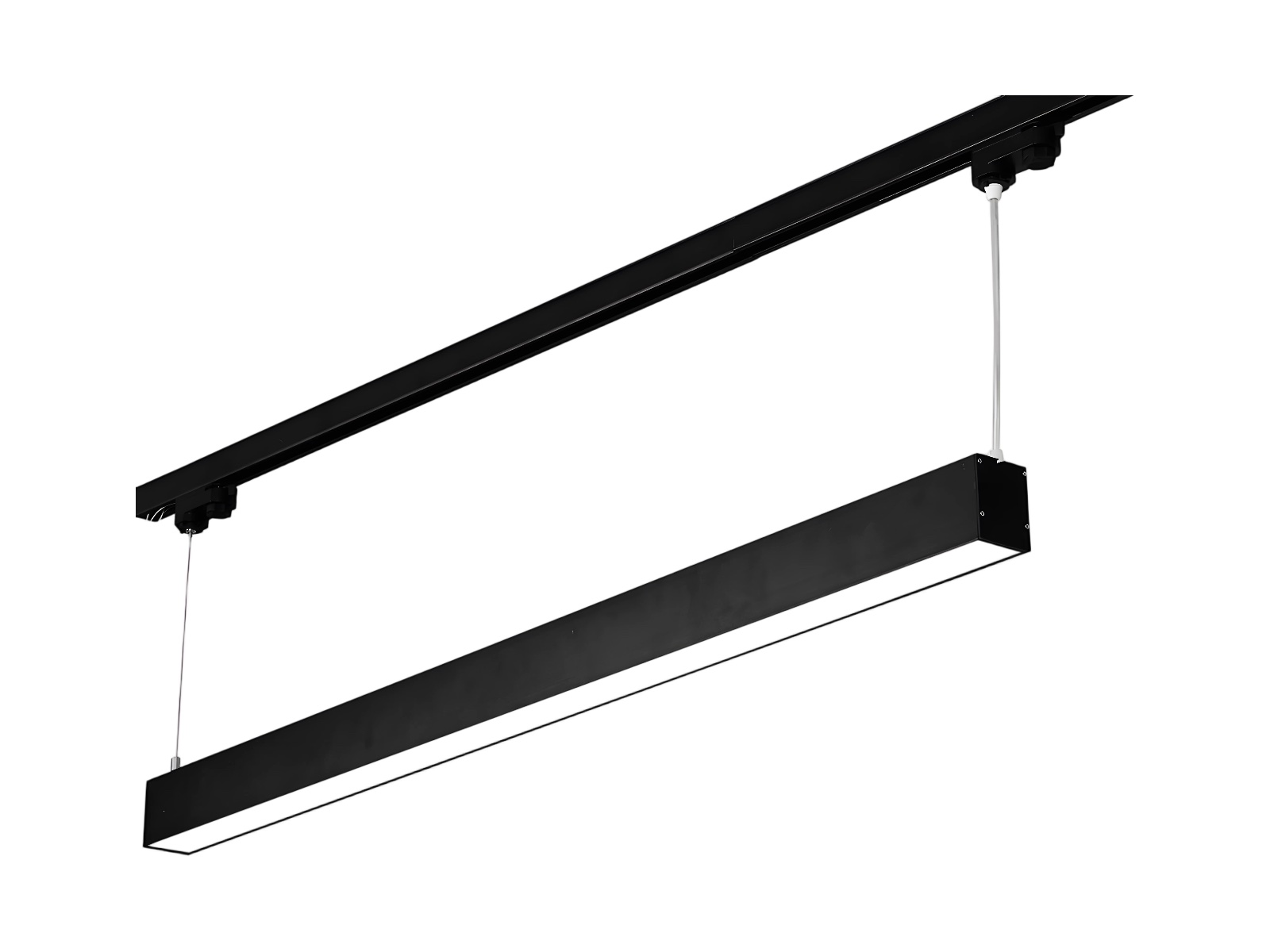

For different application, we offer three installation: hanging, track and surface mounted.
The linear CCT Selectable LED series offers Premium
Light diffusion over a light-weight impact resistant opal polycarbonate lens with different mounting options.
Features
- Isolated driver and non-isolated driver available.
- Flicker-free driver available.
- Housing color: Black, white and silver.
- Length 1200mm and different width/height available
- High light efficiency standard 100LPW.
- Suspended / Surface Mount.
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| FM-LN01-1200-4075 | L1200*W40*H75 mm | 36~40W | 200~240V | 30~40V | <4 | 3000~3600lm |
| FM-LN01-1200-5070 | L1200*W50*H70 mm | 36~40W | 200~240V | 30~40V | <4 | 3000~3600lm |
| FM-LN01-1200-6075 | L1200*W60*H75 mm | 36~40W | 200~240V | 30~40V | <4 | 3000~3600lm |
| FM-LN01-1200-7075 | L1200*W70*H75 mm | 36~40W | 200~240V | 30~40V | <4 | 3000~3600lm |
| FM-LN01-1200-8075 | L1200*W80*H75 mm | 42~48W | 200~240V | 30~40V | <4 | 4200~4800lm |
| FM-LN01-1200-10075 | L1200*W100*H75 mm | 42~48W | 200~240V | 30~40V | <4 | 4200~4800lm |
| FM-LN01-1200-12075 | L1200*W120*H75 mm | 48~60W | 200~240V | 30~40V | <4 | 4800~6000lm |
| FM-LN01-1200-15075 | L1200*W150*H75 mm | 48~60W | 200~240V | 30~40V | <4 | 4800~6000lm |
| FM-LN01-1200-20075 | L1200*W200*H75 mm | 48~60W | 200~240V | 30~40V | <4 | 4800~6000lm |
