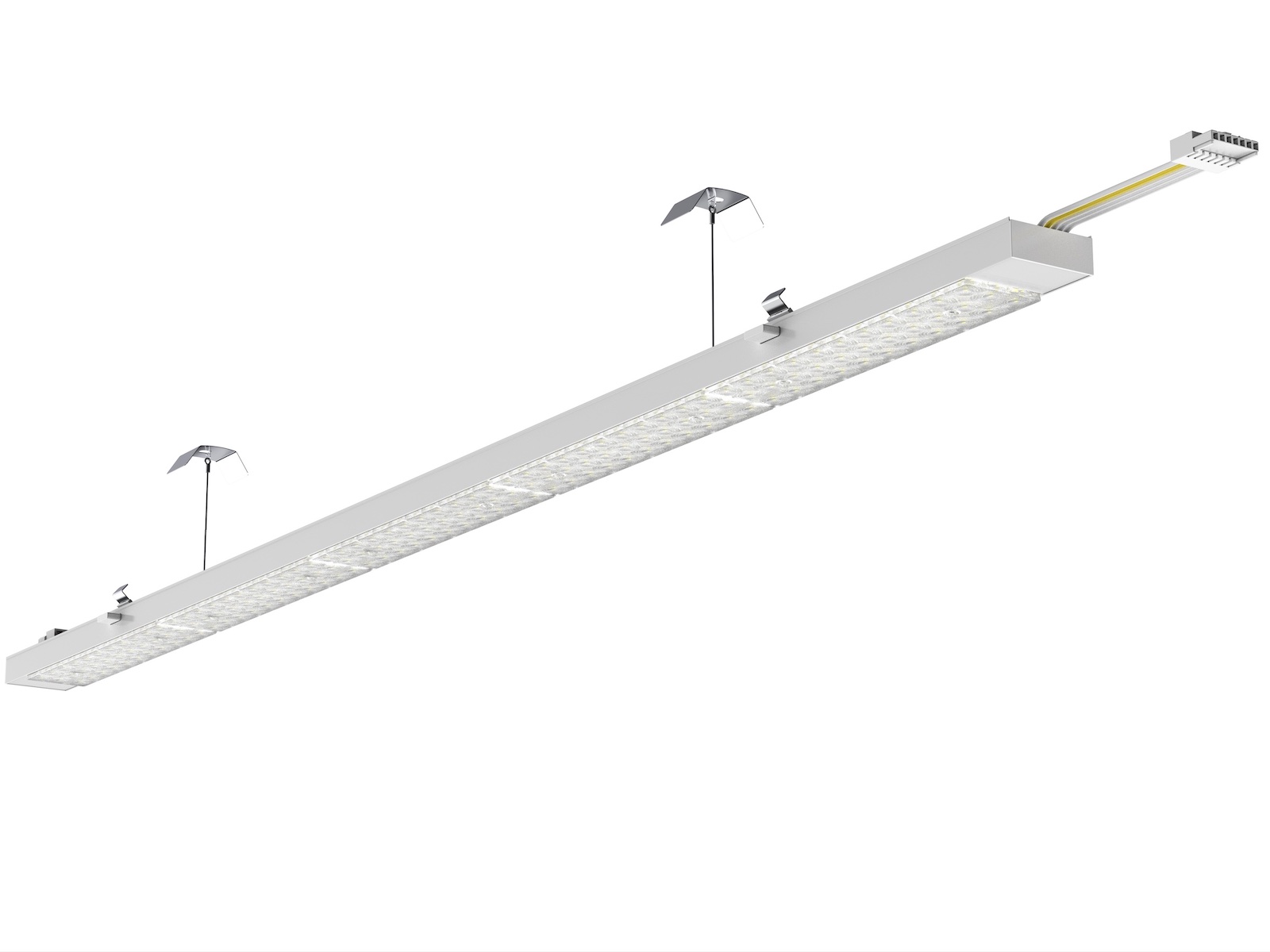

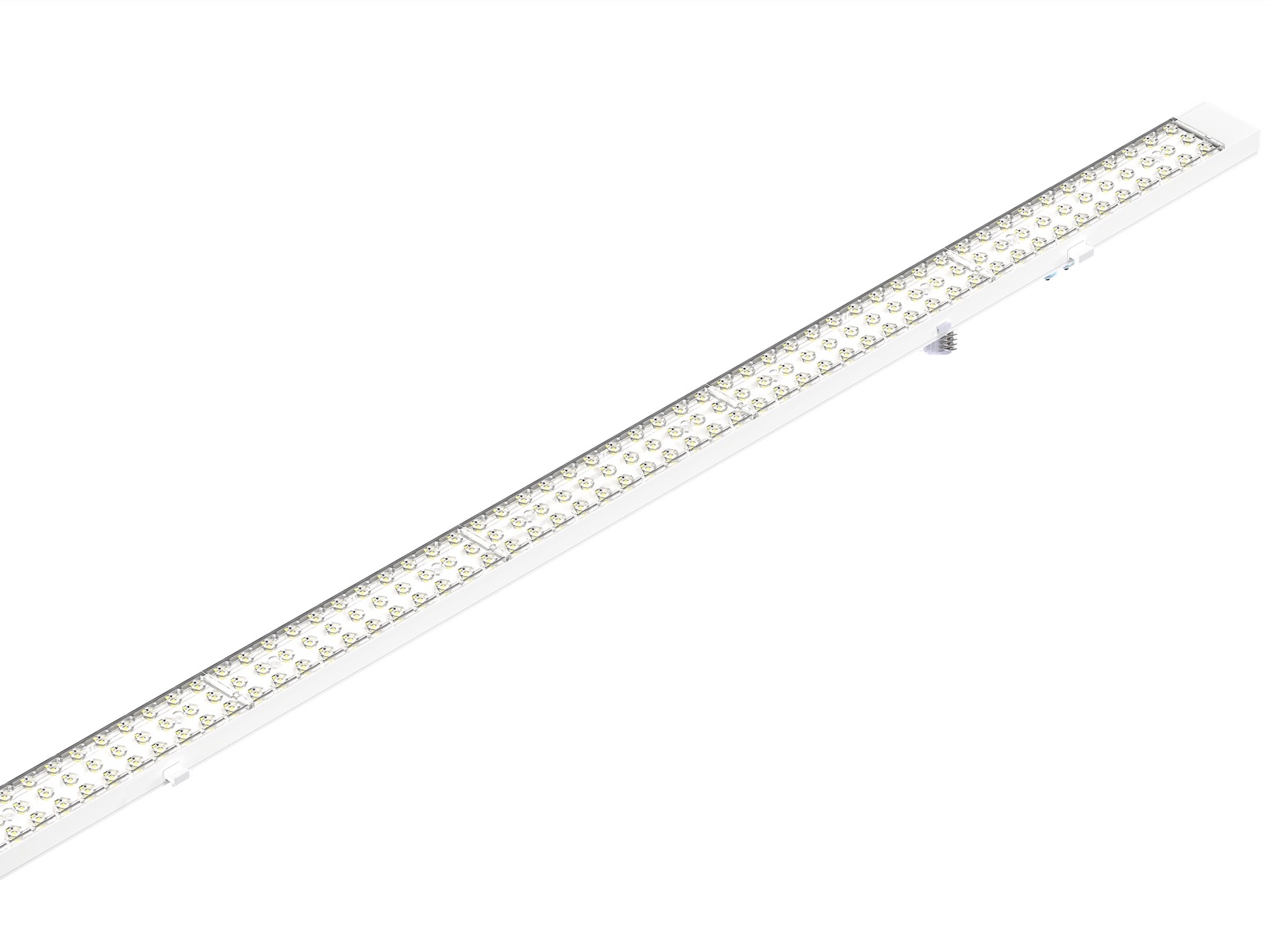

Linkable LED Linear Module

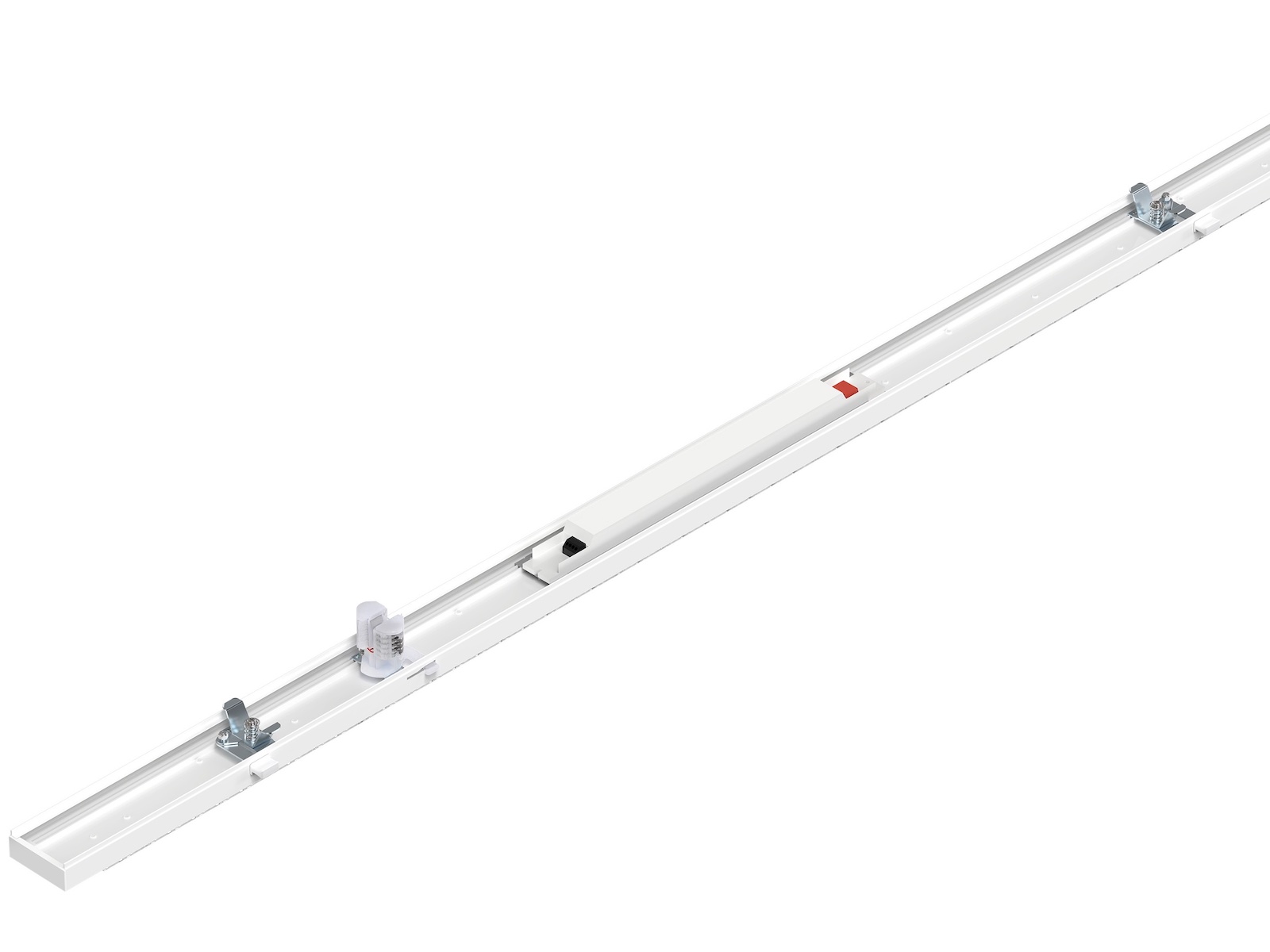

Our Linkable LED Linear module, with 6063 aluminum alloy body, this LED Luminaire Retrofit allows you to switch your existing trunking system without tools

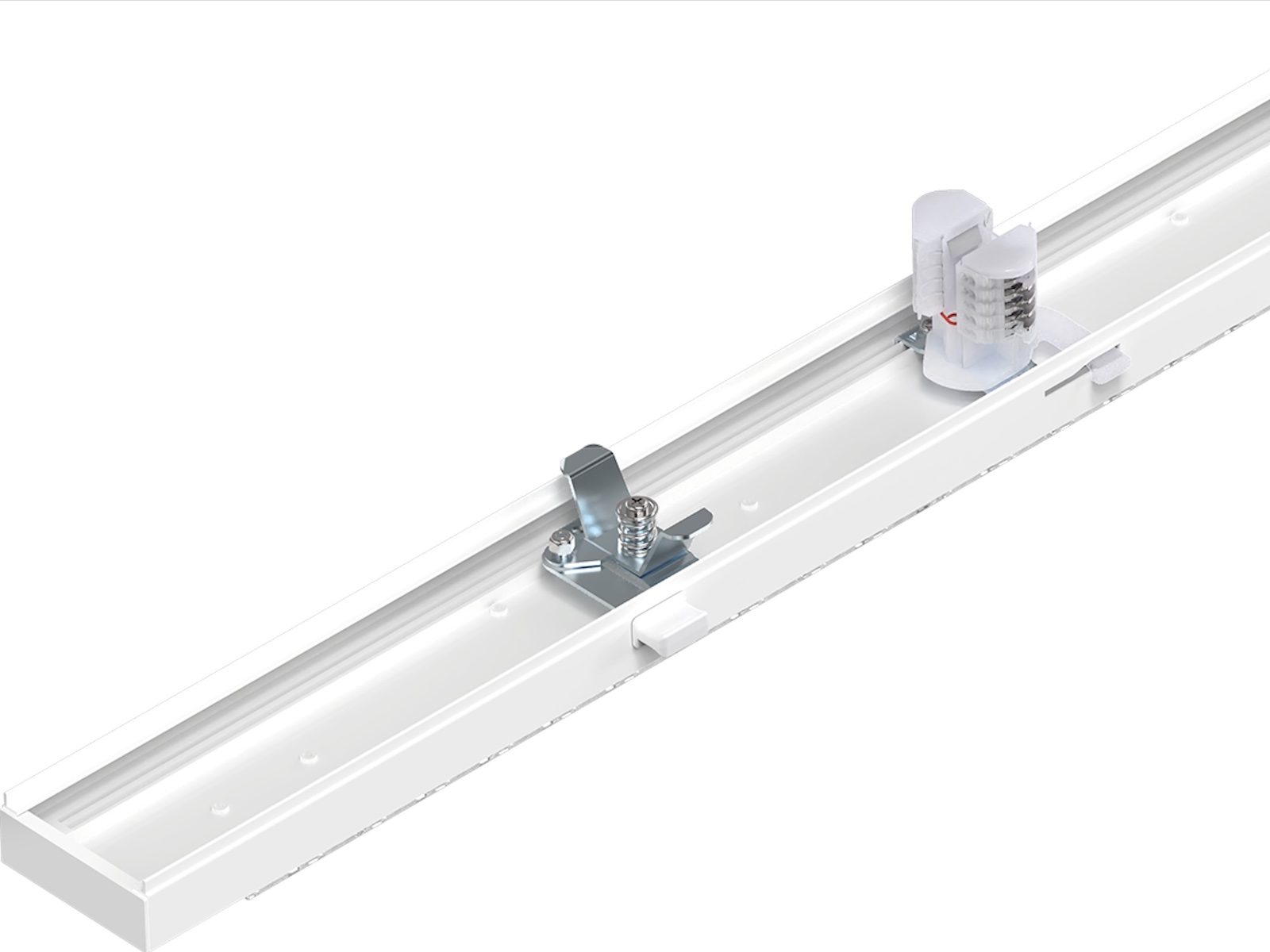

— we offer corresponding adapters to match the trunking rail perfectly.
It is compatible with the following major trunking rail brands:
Trilux, Regiolux, Philips, Osram, Siteco, Zumtobel, Ludwig, Kandem, Fluolite,
Norton, Thron, AEG, OMS, SD8, OM5, Moltomx, RIDI, Lite-Licht, Lunux
Features
- Isolated driver and Flicker-free driver available.
- Single CCT but Multi Wattages adjustable.
- Multi beam angles: 30° / 60° / 90° / DA25° / 120°
- 120-180lm/w
- One to one fit
- 1175/1225/1475/1525mm size
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| XXX5P-3531-P1 | same as old T8/T5 | 20~35W by Switch | AC/DC 200~240V | 30~40V | <5 | 3000~5800lm |
| XXX5P-6031-P1 | same as old T8/T5 | 33~58W by Switch | AC/DC 200~240V | 30~40V | <5 | 5000~6000lm |
| XXX5S-75-PC | same as old T8/T5 | 20~75W by Switch | AC/DC 200~240V | 30~40V | <5 | 3000~12000lm |
