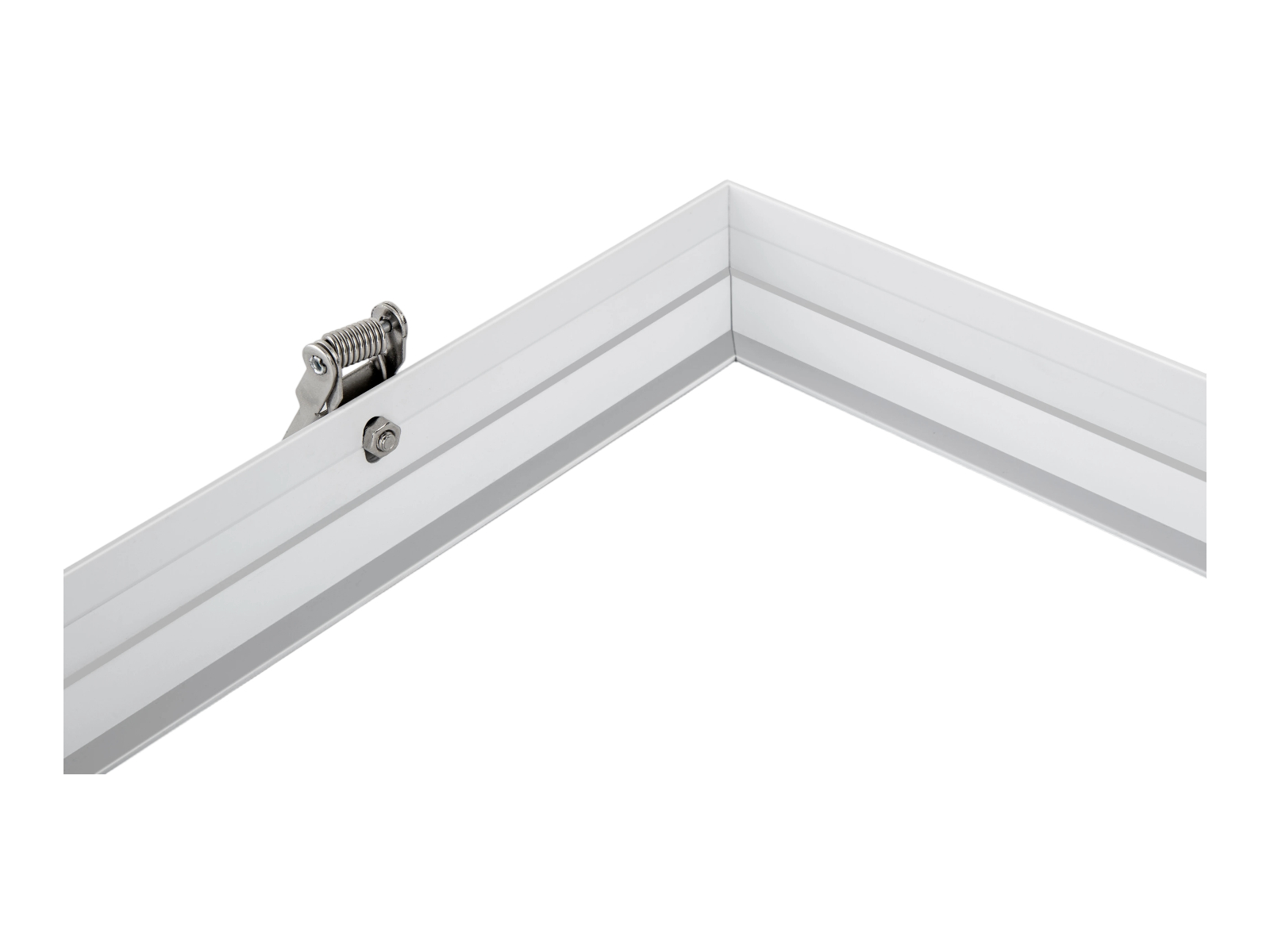

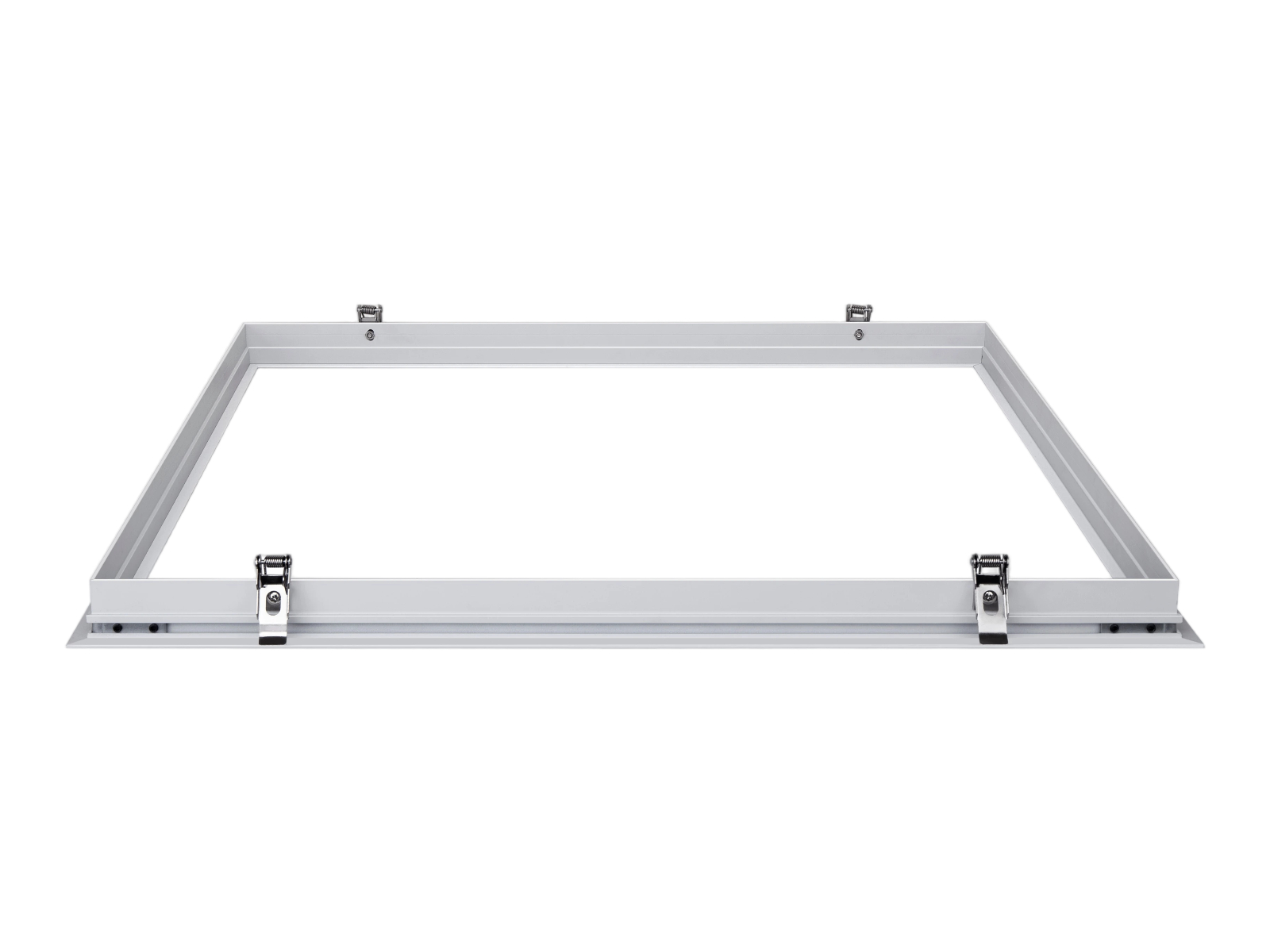

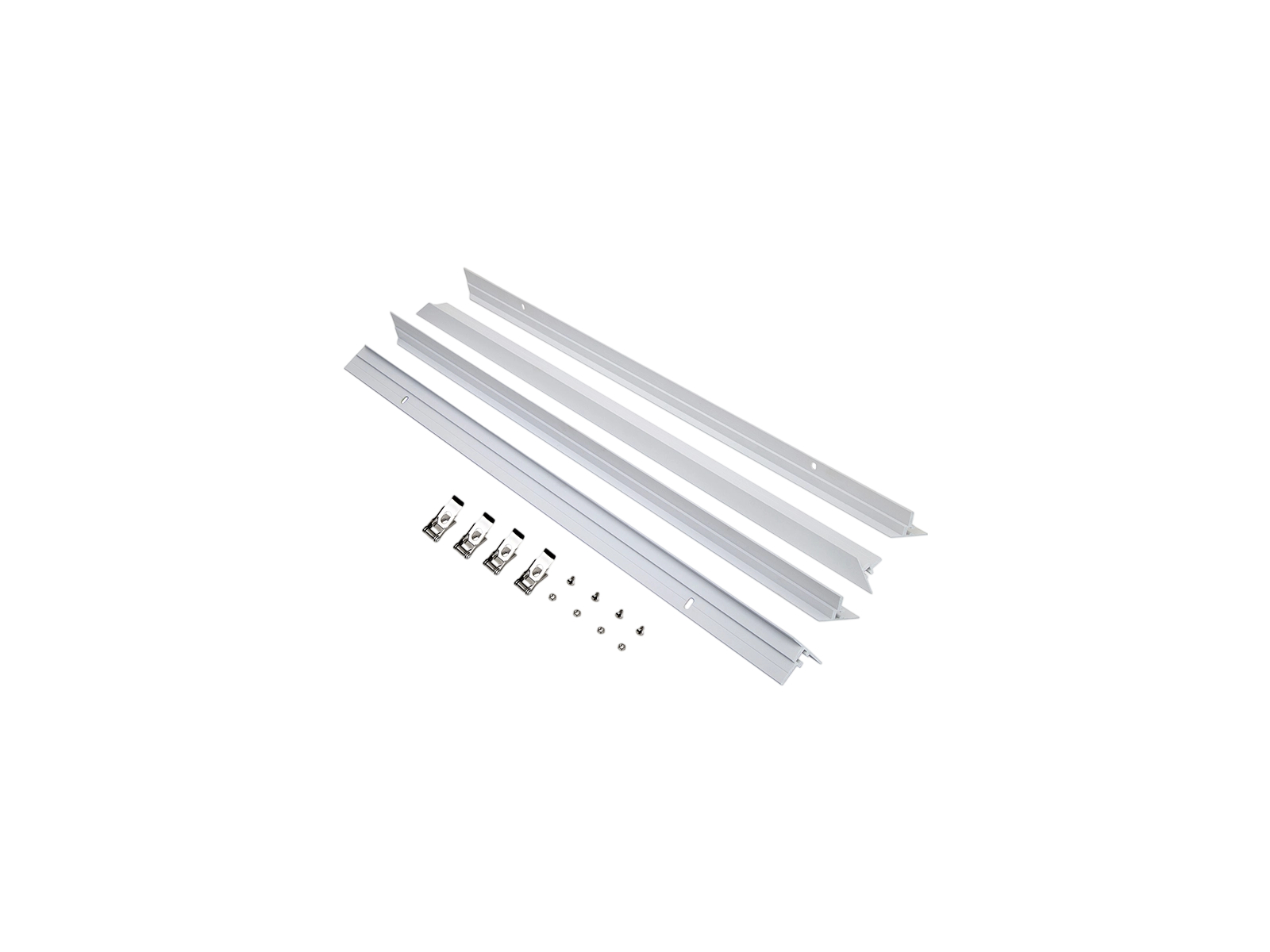

RF02 recessed frame for LED panel
RF02 recessed frame for LED panel, is a reliable solution for seamless recessed installation in ceilings without grid systems.
Crafted from full 6063 aluminium alloy with a durable powder-coated surface finish, it is compatible with both edge-lit and back-lit LED panels.
Features
- Regular size available: 300×300, 300×600, 600×600, 620×620, 300×1200, 600×1200mm etc.
- Customized sizes available: 400×1600, 300×1500, 1500×2000mm etc.
- White/Silver/Black available, White RAL9016, RAL9010, RAL9003
- 25mm height are available.
- 1.1mm thickness are available.
- 5 years warranty
| Article Number | Size | Thickness | Height |
|---|---|---|---|
| FM-RF02-303 | 300*300mm | 1.1mm | 25mm |
| FM-RF02-306 | 300*600mm | 1.1mm | 25mm |
| FM-RF02-606 | 600*600mm | 1.1mm | 25mm |
| FM-RF02-626 | 625*625mm | 1.1mm | 25mm |
| FM-RF02-123 | 1200*300mm | 1.1mm | 25mm |
| FM-RF02-126 | 1200*600mm | 1.1mm | 25mm |
