Round LED panel light
Our Round Led panel light, is a big size luminaire with an up & down lighting design. We choose 6063 aluminium alloy, not plastic material. Its adopted high-lumen SMD LED light source, larger lighting area, and low glare design make a softer and uniform light output AL6063 aluminum housing provides excellent thermal management.
Size options: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, It can do CCT adjustable, multiple installation ways available which meets more application demands.
Features
- Interchangeable CCT (3000+4000+5700K) with a slide switch.
- DALI dimmable is available.
- Multiple installation ways: Recessed/Surface mounted/Pendant

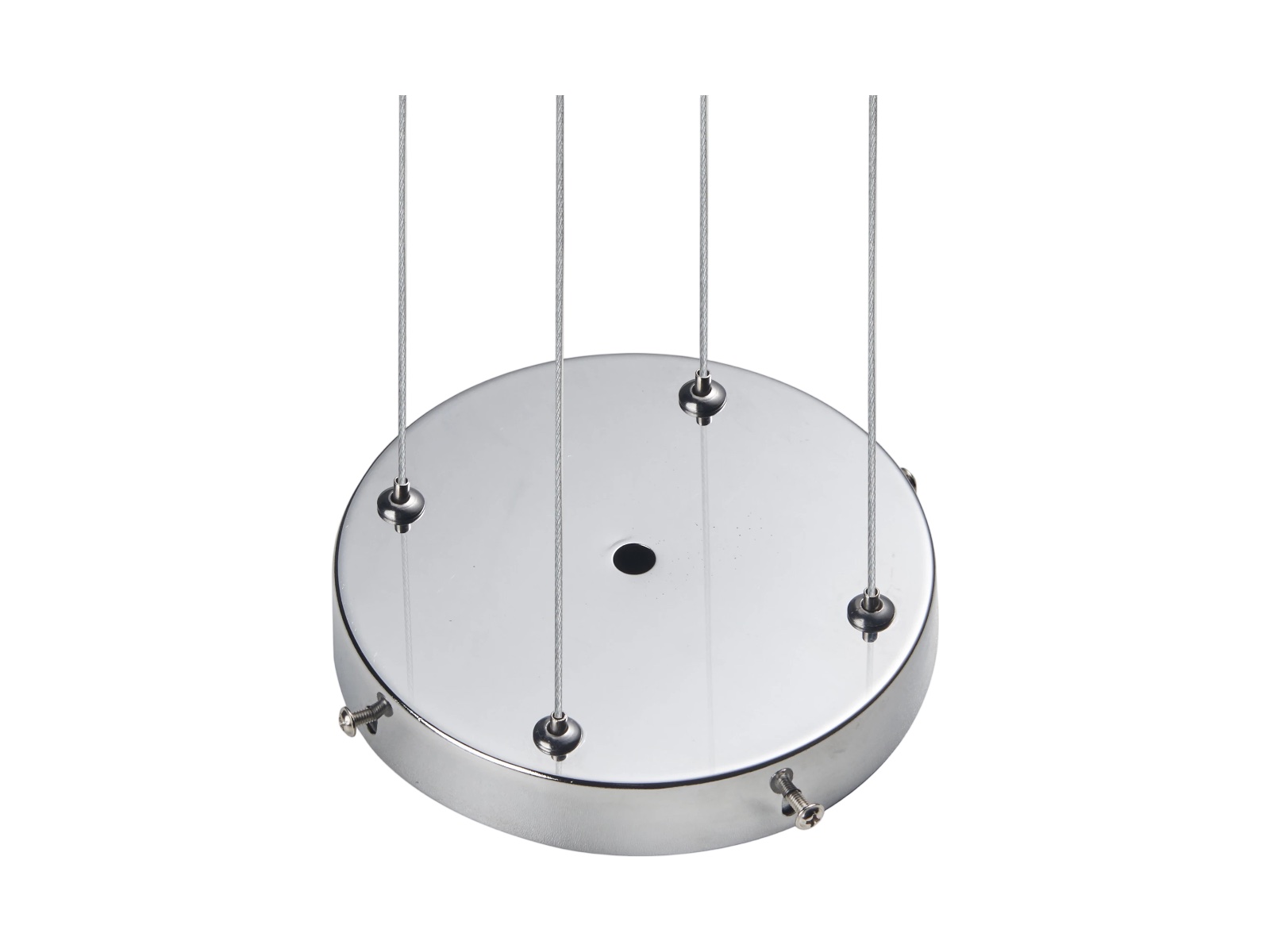

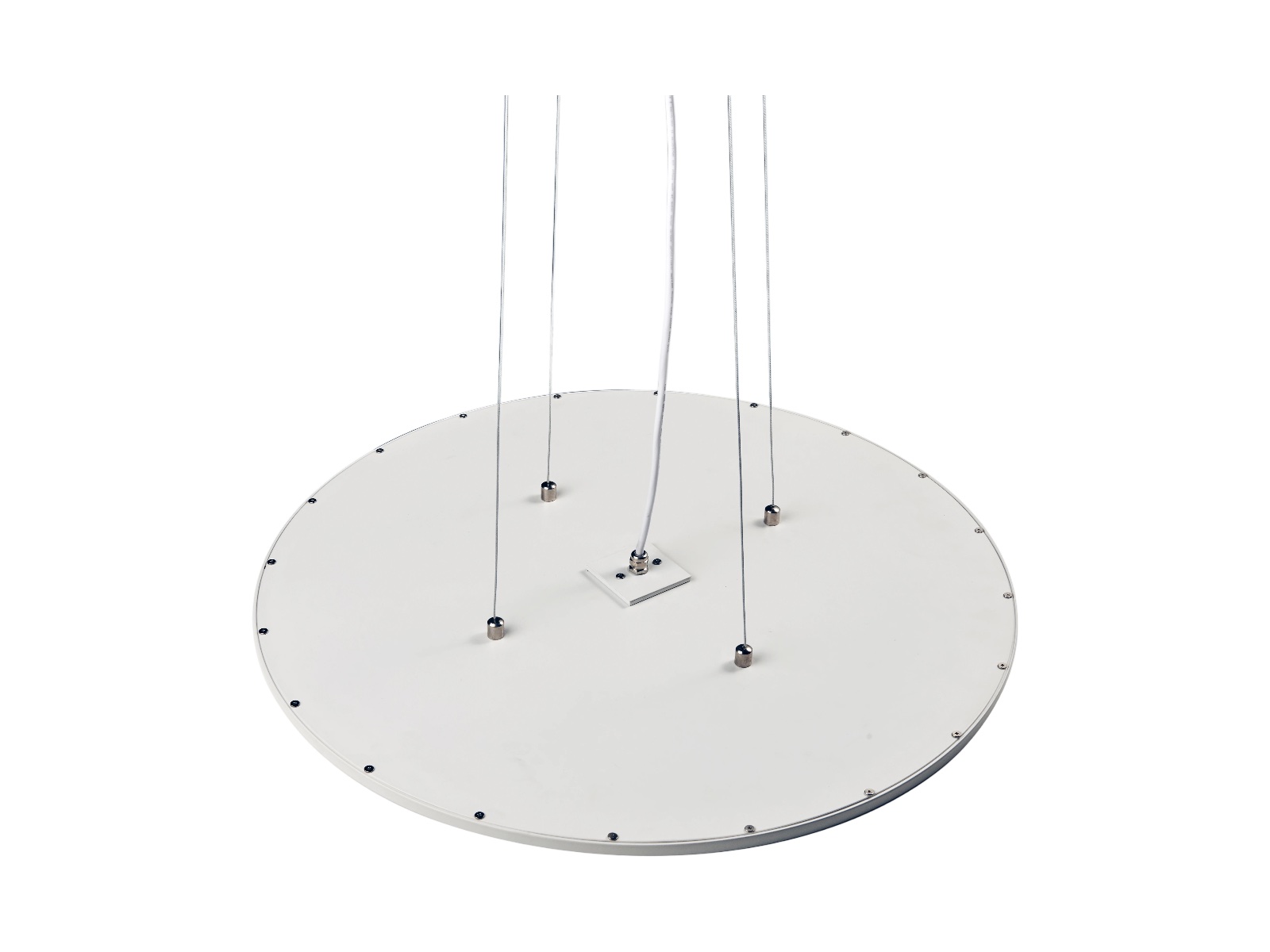

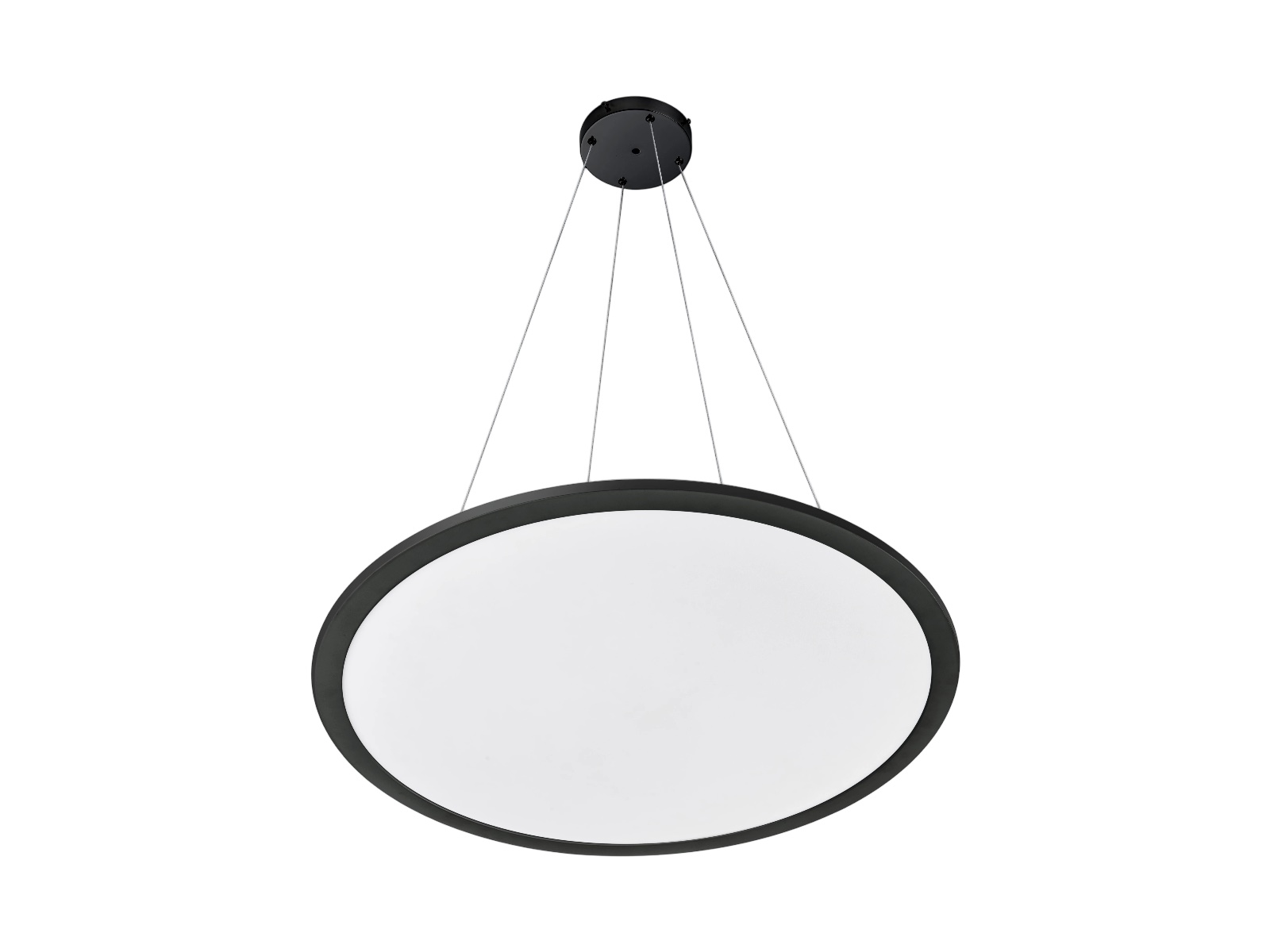

(With pendant rod suspension, with steel wire suspension, with wire harness suspension.) - Two lighting designs: 100% direct lighting, up & down lighting (Not for recessed installation).
- Up & down lighting version: 10% up and 90% down lighting ratio.
- Multiple functions: Adjustable sensor, Emergency.
| Article Number | Size | Power | AC Input | DC Output | SDCM | Lumen Output |
|---|---|---|---|---|---|---|
| FM-RPL04-300 | Φ300*90mm | 20W | 200~240V | 30~40V | <5 | 2000~2200lm |
| FM-RPL04-400 | Φ400*90mm | 30W | 200~240V | 30~40V | <5 | 3000~3300lm |
| FM-RPL04-600 | Φ600*90mm | 40W | 200~240V | 30~40V | <5 | 4000~4400lm |
| FM-RPL04-800 | Φ800*90mm | 60W | 200~240V | 30~40V | <5 | 6000~6600lm |
| FM-RPL04-1000 | Φ1000*90mm | 80W | 200~240V | 30~40V | <5 | 8000~8800lm |
| FM-RPL04-1200 | Φ1200*100mm | 100W | 200~240V | 30~40V | <5 | 10000~12000lm |
| FM-RPL04-1500 | Φ1500*100mm | 120W | 200~240V | 30~40V | <5 | 12000~14000lm |
